Equipment Overview
The W-Beam Guardrail Roll Forming Machine is specialized cold-roll forming equipment designed for the production of highway W-beam steel guardrail panels. W-beam steel guardrails—comprising both two-wave (W-beam) and three-wave (Three-beam) types—represent the most widely used form of guardrail today. The W-beam guardrail is a strip-shaped, energy-absorbing structure installed along the roadside or in the median strip; upon vehicle impact, it absorbs energy through structural deformation or by allowing the vehicle to ride up the rail, thereby mitigating injury to occupants. Utilizing a continuous cold-roll forming process, the machine integrates hydraulic uncoiling, guided feeding, pinch-leveling, hydraulic punching, roll forming, cut-to-length shearing, and palletized discharge into a single, streamlined operation, directly producing finished W-beam guardrail panels.
The entire line features fully automated PLC control and a touchscreen HMI, ensuring continuous, automated operation from uncoiling to finished product discharge. Key integrated units include a five-roller leveling system, a two-station four-column hydraulic punching unit (integrated within the main machine), and a 12-station main roll-forming unit. It employs a cast-iron arch-style gearbox transmission structure, offering high rigidity, precision, and durability. The equipment is compatible with various materials, such as Q235 and Q345 low-alloy high-strength steel, in thicknesses ranging from 2.0 mm to 3.0 mm, and is capable of producing standard W-beam guardrail panels (4320 × 310 × 85 mm). Requiring only 1–2 operators, this machine is essential equipment for highway guardrail manufacturers aiming to achieve large-scale, standardized, and intelligent production.
W-beam steel guardrails are classified into five crashworthiness levels—B, A, SB, SA, and SS—with the W-beam panel suitable for general road sections and moderate protection requirements. They are categorized by installation location (roadside or median) and by anti-corrosion coating type (single-layer or composite coating). Surface treatment options include hot-dip galvanizing or a dual-layer anti-corrosion system combining galvanizing with powder coating. The guardrail panels produced by this equipment strictly comply with the national standard GB/T 31439.1-2025, *Corrugated Steel Beam Guardrails – Part 1: Two-Wave Corrugated Steel Beam Guardrails*; this standard was issued on August 29, 2025, and officially implemented on March 1, 2026.
Core Advantages and Selling Points
(1) Cast-iron arch-style gearbox drive: High rigidity, high precision, and long service life

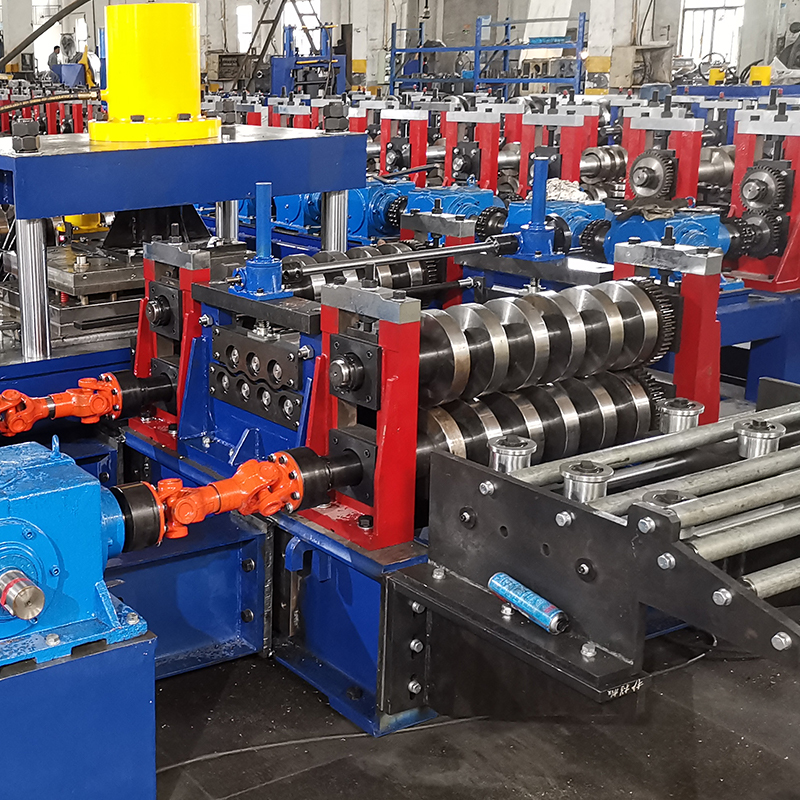

The forming machine utilizes a cast-iron arch-style gearbox drive structure, with each forming stand independently equipped with a gearbox; this is a key advantage distinguishing this equipment from conventional chain-driven models.
Compared to chain drives, gearbox drives offer significant advantages such as smooth operation, low noise, high precision, and extended service life. The cast-iron arch-style frames undergo tempering treatment to ensure high rigidity and excellent resistance to deformation, guaranteeing stable, high-intensity operation over long periods. The large-diameter forming shafts (Φ80mm) offer high load-bearing capacity and superior torsional resistance, specifically designed for the high-speed forming of 2.0–3.0mm thick plates.
(2) Five-roll leveling + dual-roll pinch feeding: Precise and reliable material pre-treatment
The leveling mechanism employs a configuration featuring dual-roll pinch feeding (at both entry and exit) and five-roll leveling, with leveling roll diameters of Φ90 mm. The pinch-feed rolls provide stable feeding power, while the five-roll precision leveling effectively eliminates internal stresses in 2.0–3.0mm thick plates, ensuring the steel strip enters the subsequent punching and forming stages in a flat, precise condition. The integrated design of pinch feeding and leveling lays a solid foundation for high-precision forming, effectively preventing defects caused by material unevenness.
(3) Two-station four-column hydraulic punching (integrated into the main unit): High force and high precision
The punching mechanism utilizes a four-column hydraulic structure (with the punching frame constructed from welded steel plate and tempered). Its two-station design allows punching to be completed within the main unit; this integration combines punching and forming into a single machine unit, eliminating intermediate transfer steps and resulting in higher positioning accuracy and a streamlined workflow. The four-column structure ensures high rigidity and guiding precision, while the hydraulic system delivers substantial force and cutting power, specifically designed for 2.0–3.0mm thick plates. The two-station setup enables the simultaneous punching of various hole types—such as connection bolt holes and splicing bolt holes—while the integration with the main unit minimizes hole-position deviation and enhances product consistency.
(4) 12-Stand Multi-Pass Forming for Consistent Corrugation
Utilizing a 12-stand, multi-pass progressive cold-roll forming process, the system optimizes mold design and forming parameters through precision algorithms to ensure product accuracy from the source. The 12-stand layout is scientifically designed to gradually bend 2.0–3.0mm thick plates into the standard corrugated profile. This multi-pass progressive forming effectively minimizes material stress concentration, ensuring consistent corrugation and stable cross-sectional dimensions. The forming line speed ranges from 0 to 15 m/min (excluding punching and cutting); based on a standard panel length of 4320mm, the system can produce 2–3 guardrail panels per minute, meeting high-volume production demands.
(5) High-Precision Fixed-Length Cutting (±1.0mm)
Length precision reaches ±1.0mm—far exceeding industry standards—effectively ensuring accuracy during guardrail installation and splicing. A stable product pass rate significantly reduces raw material waste and rework costs. The corrugated guardrail panels meet strict standards for straightness and twist, effectively preventing misalignment during installation.
(6) High-Power Drive System
The forming machine is equipped with a 22kW motor, providing ample power to ensure stable and efficient processing of 2.0–3.0mm thick plates across the 12 forming stands. Key electrical components are sourced from internationally renowned brands, ensuring low failure rates and a long service life.
(7) Quenched Cr12MoV Rollers for Durability and Precision
The roller set is made of Cr12MoV steel and undergoes quenching treatment (HRC 58–62), resulting in high hardness and excellent wear resistance. Cr12MoV is a premium cold-work die steel known for high hardness, superior wear resistance, and good hardenability. After quenching, it achieves a hardness of HRC 58–62, ensuring long mold life and stable precision, which guarantees consistent quality during long-term, high-volume production.
(8) Intelligent Control and User-Friendly Operation
Features fully automatic PLC control and a touchscreen HMI (Human-Machine Interface) to enable digital management of the entire process. Operators can configure parameters such as production speed and cut length via the interface with a single touch. The equipment offers both manual and automatic operating modes to suit various production scenarios. Multiple safety protection measures are implemented during standard operation to ensure operator safety. It is equipped with real-time monitoring and fault warning systems that automatically trigger alarms and display the cause of any malfunction. Novices can become fully independent after just 1–2 days of training, significantly lowering the required skill level for operators.
Technical Parameters
Item | Parameter
Applicable materials | Q235, Q345 low-alloy high-strength steel, etc.
Material thickness | 2.0–3.0 mm
Produced profile | Two-wave (W-beam)

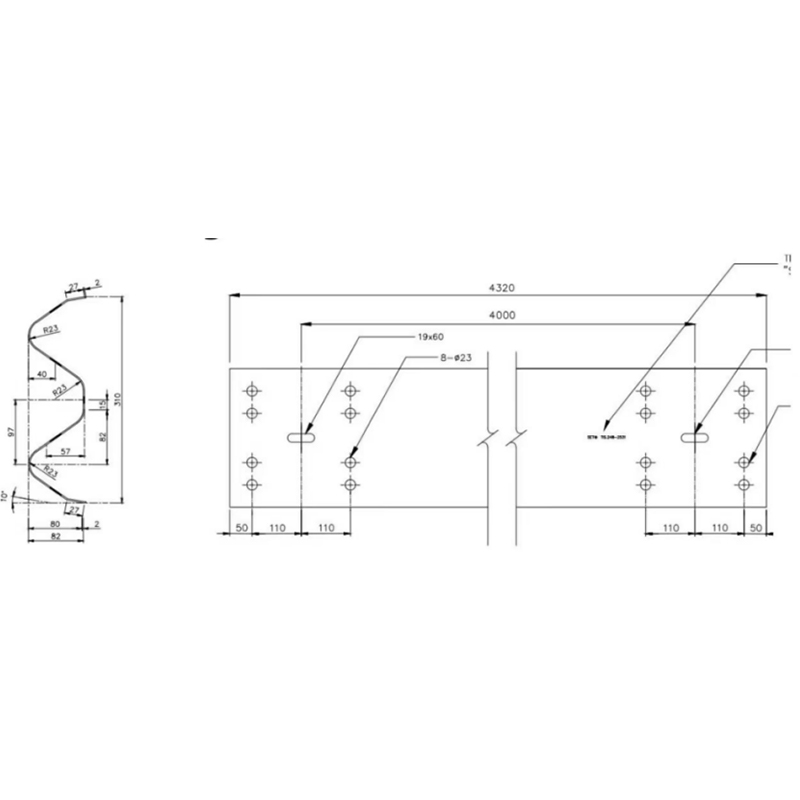

Product specifications | 4320 × 310 × 85 mm (Standard two-wave panel)
Forming machine structure | Cast-iron arch-style frame with gearbox drive
Leveling mechanism | Front and rear dual-roller pinch feed + 5-roller leveling
Leveling roller diameter | Φ90 mm
Punching mechanism | Four-column hydraulic punching (welded steel punching frame, tempered)
Punching stations | 2 stations (punching performed within the main machine)
Shaft diameter | Φ80 mm
Main motor power | 22 kW
Forming line speed | 0–15 m/min (excluding punching and cutting)
Forming stages | 12 main roller stations
Cut-to-length accuracy | ±1.0 mm
Roller tooling | 1 set
Roller material | Cr12MoV, quenched (HRC 58–62)
Control system | Fully automatic PLC control
Operators | 1–2 persons

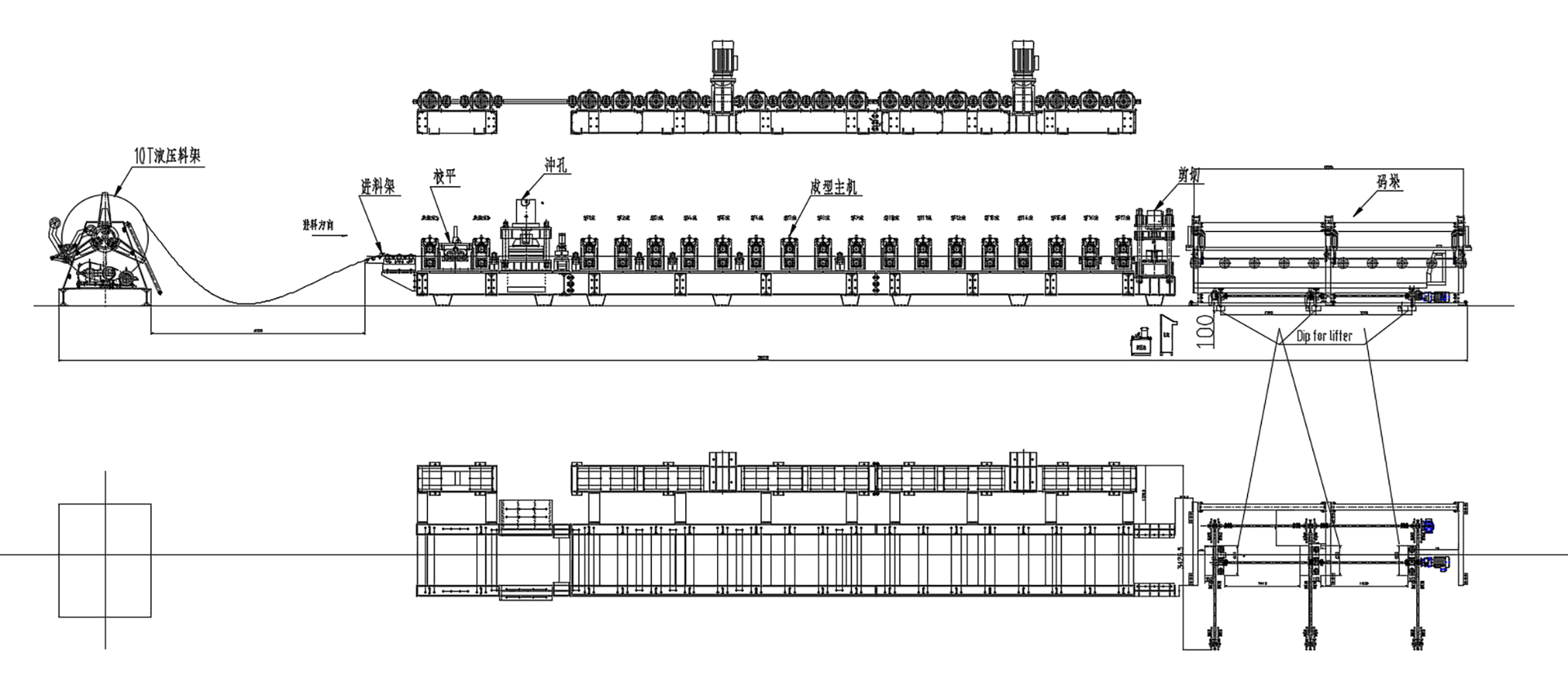

Production Process
Hydraulic Uncoiling → Guided Feeding → Pinching & Leveling → Hydraulic Punching → Roll Forming → Cut-to-Length → Discharge
Process Step | Description
Hydraulic Uncoiling | Hydraulic uncoiler supports the steel coil and ensures stable material feeding; maximum load capacity is customizable.
Guided Feeding | Automatic material guiding and alignment ensure the steel strip enters the leveling unit in the correct position.
Pinching & Leveling | Features front and rear pinch rollers and a 5-roller leveling system; precision leveling via Φ90mm shafts eliminates internal stress in 2.0–3.0mm thick plates.
Hydraulic Punching | 2-station, four-column hydraulic punching (integrated into the main machine) for punching connection and splicing bolt holes.
Roll Forming | 12-stand progressive cold roll forming gradually shapes the thick plate into a double-wave profile.
Cut-to-Length | Hydraulic cutting with a length accuracy of ±1.0mm; produces clean, smooth cut edges.

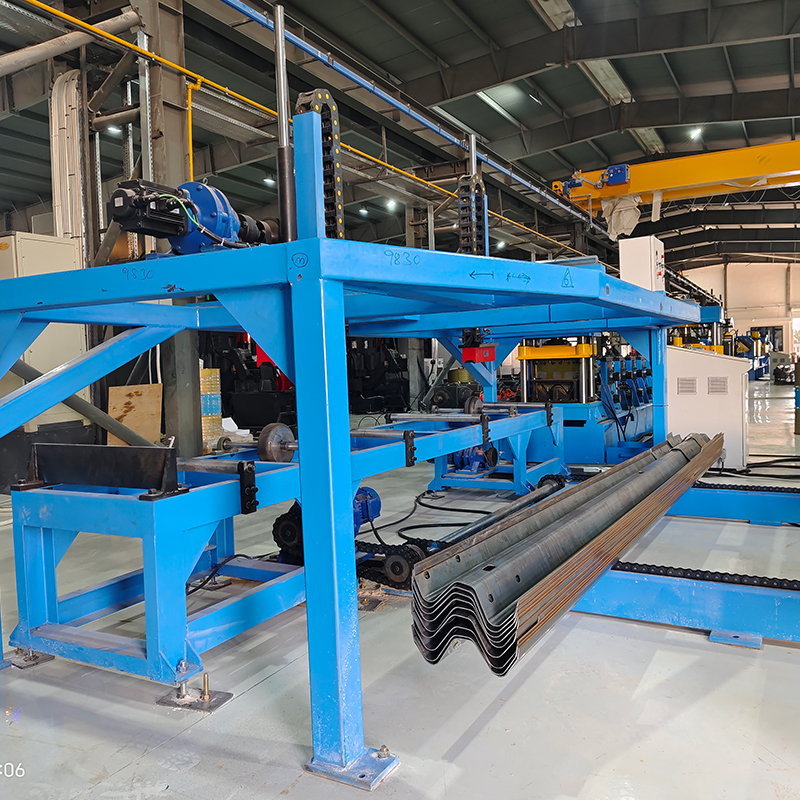

Discharge | Output of finished products; ensures orderly discharge.
Application Areas
W-beam guardrail panels produced by the high-speed 2-wave cold-roll forming machine are widely used in the following areas:
Expressways: Safety protection along the sides and central medians of expressways; W-beam steel guardrails are the most widely used safety facilities on expressways, with the 2-wave type suitable for sections requiring standard protection levels.
National and Provincial Trunk Highways: Safety protection for Class I and Class II highways; 2-wave guardrail panels are suitable for moderate protection requirements and offer an economical, practical solution.
Rural and Mountain Roads: County roads, township roads, and hazardous sections in mountainous areas; guardrail panels with thicknesses of 2.0–3.0 mm are economical and practical, meeting basic protection needs.
Bridges and Tunnels: Bridge transition sections and tunnel entrances/exits; used in conjunction with specialized bridge guardrails.
Municipal Roads and Urban Expressways: Urban elevated roads and expressways; W-beam guardrails are aesthetically pleasing, durable, and easy to maintain.
Industrial Parks and Factory Roads: Safety protection for internal roads within large industrial parks and logistics parks.
Tourist Attraction Roads: Winding mountain roads and cliff-side sections within scenic areas; W-beam guardrails provide reliable safety protection.
Airports and Ports: Roads surrounding airports and internal roads within port terminals.
Market Outlook
Driven by the continuous advancement of global infrastructure development, the highway guardrail market is experiencing steady growth. The global market for highway guardrail components is valued at approximately US$1.259 billion in 2025 and is projected to reach US$1.783 billion by 2032, reflecting a compound annual growth rate (CAGR) of 5.1%. China's roadside safety barrier construction market is estimated at US$1.92 billion in 2025 and is expected to grow to US$2.63 billion by 2031, with a CAGR of 5.43%. The domestic road guardrail market reached a scale of RMB 38.76 billion in 2025—a year-on-year increase of 12.4%—and is projected to surpass RMB 43 billion in 2026, maintaining a growth rate between 11% and 13%. W-beam guardrails account for 78% of the highway guardrail market share.
On August 29, 2025, the Standardization Administration of China (SAC) released the national standard GB/T 31439.1-2025, "Corrugated Steel Beam Guardrails – Part 1: Two-Wave Corrugated Steel Beam Guardrails," which is set to take effect on March 1, 2026. The implementation of this new national standard will further regulate the production and inspection requirements for W-beam guardrail panels, impose stricter demands on manufacturing equipment, and create broader market opportunities for high-quality guardrail panel forming equipment.
A nationwide transition from "two-wave" to "three-wave" guardrail panels is currently underway; this involves replacing the standard two-wave panels (featuring two curved sections) with three-wave panels, which are wider and offer superior impact resistance. As road safety standards rise and the new national standard is implemented, design and performance requirements for corrugated guardrail panels are becoming increasingly stringent, driving sustained demand for high-quality forming equipment. Corrugated steel beam guardrails are a classic cold-formed steel product; given the continued investment in transportation infrastructure and the ongoing elevation of road safety standards, the market demand for high-quality, high-precision corrugated guardrail panels is expected to keep growing.
Service & Support
Solution Design: Personalized equipment selection and production line layout based on customer product drawings, capacity requirements, and target markets.
Custom Manufacturing: Support for non-standard customization, with full control over the process from roll design to complete line manufacturing.
Installation & Commissioning: On-site installation, commissioning, and operator training provided by engineers to ensure rapid production startup.
After-Sales Support: Long-term technical consultation and spare parts supply; engineers hold valid visas and are available for on-site service worldwide at any time.
Continuous Optimization: Equipment modification and capacity upgrade services available to adapt to changing production needs.
Why Choose Us
Nearly 20 Years of Manufacturing Experience: Mature technology, refined processes, and reliable quality.
Thick-Plate Forming Expert: Covers thicknesses of 2.0–3.0mm; specifically designed for highway guardrail panels.
Rugged and Durable: Cast-iron arch-style gearbox drive, large Ø80 mm shaft diameter, and Cr12MoV quenched rollers (HRC 58–62).
Integrated Punching and Forming: Two-station, four-column hydraulic punching performed within the main unit; precise positioning and a compact workflow.
High-Precision Manufacturing: Length accuracy of ±1.0mm and a stable product pass rate.
Efficient Production: Line speed of 15m/min; daily capacity meets high-volume supply demands.
Intelligent Control: Fully automatic PLC system with touchscreen operation; the entire line can be operated by just 1–2 people.
Direct Manufacturer: No middlemen; excellent cost-performance ratio.
Global Service Network: Engineers hold all necessary visas; rapid response capabilities.
