I. Equipment Introduction
The solar PV mounting cold-roll forming machine is specialized equipment designed for the production of various PV mounting profiles. Utilizing a continuous cold-roll forming process, the machine transforms galvanized steel coils into finished PV mounting profiles in a single, integrated workflow—encompassing uncoiling and leveling, servo-driven feeding and punching, guided entry, roll forming, servo-tracking cutting, and stacking/unloading.
Designed specifically for galvanized steel strips with thicknesses ranging from 1 mm to 3 mm, a single unit can produce mounting profiles with side heights between 21 mm and 82 mm. The side ribbing function can be enabled or disabled based on customer requirements: enabling ribbing significantly enhances structural strength, making it ideal for long-span, high-load applications; disabling it is suitable for light-load projects where aesthetics are a priority. The entire line features fully automatic PLC control and supports one-touch specification switching, ensuring a continuous, automated process from uncoiling to finished product stacking. Requiring only 1–2 operators for monitoring, this equipment is essential for PV mounting manufacturers seeking to achieve flexible and intelligent production.
The machine is compatible with various materials, such as galvanized steel and Al-Zn coated steel, within a thickness range of 1.0–3.0 mm. It produces profiles with diverse cross-sections—including C-shapes and U-shapes—and is widely used in ground-mounted PV power plants, rooftop distributed PV systems, and agrivoltaic projects.
II. Core Advantages and Selling Points
1. One machine covers the full specification range (21–82mm) with one-touch switching
This is the core advantage distinguishing this equipment from conventional photovoltaic (PV) mounting production lines.
Conventional equipment requires manual roller adjustment or even mold replacement when changing specifications, resulting in long downtimes and complex operations. This machine utilizes adjustable forming technology, allowing a single unit to cover the entire specification range for side heights of 21–82mm—including mainstream PV mounting sizes such as 41×21, 41×41, 41×62, and 41×82. Specification switching is automated via a PLC-controlled motor system; operators simply input the target parameters on the touchscreen, and the roller positions adjust automatically. There is no need for mold changes, manual adjustments, or repeated trial runs. The switch takes just 3–5 minutes, significantly boosting production efficiency for orders involving multiple product varieties.
2. Flexible side-ribbing options, selectable on demand
The equipment features a side-ribbing function that can be enabled or disabled with a single touch based on customer requirements:
Ribbing enabled: Creates a reinforcing rib structure on the profile's side, significantly enhancing flexural strength and torsional rigidity. This is ideal for high-strength applications such as long-span mounts and installations in areas subject to high wind or heavy snow loads.
Ribbing disabled: Produces a profile with a smooth, flat surface and a clean, aesthetic appearance. This is suitable for light-load projects or distributed PV installations where visual appeal is a priority.
Two modes in one machine meet the diverse needs of different projects without requiring additional investment.
3. Integrated uncoiling and leveling for space and cost savings
The design integrates uncoiling and leveling into a single, compact unit. The leveling section employs multi-roller precision leveling to effectively eliminate internal stress in 1–3mm steel strips, ensuring accuracy in subsequent forming stages. The machine bed is constructed from welded steel plate and undergoes tempering to relieve internal stress and prevent structural deformation.
4. Servo feeding combined with punch press for precision and efficiency
A high-precision servo system ensures accurate feeding and positioning, while a punch press handles the punching of various features—such as mounting holes, connection holes, and interlocking teeth—with high efficiency. The process sequence of punching before forming allows for precise punching according to specifications prior to the forming stage, ensuring dimensional accuracy and high production efficiency. Servo-driven feeding ensures precise positioning, minimizes scrap, and effectively reduces material costs.

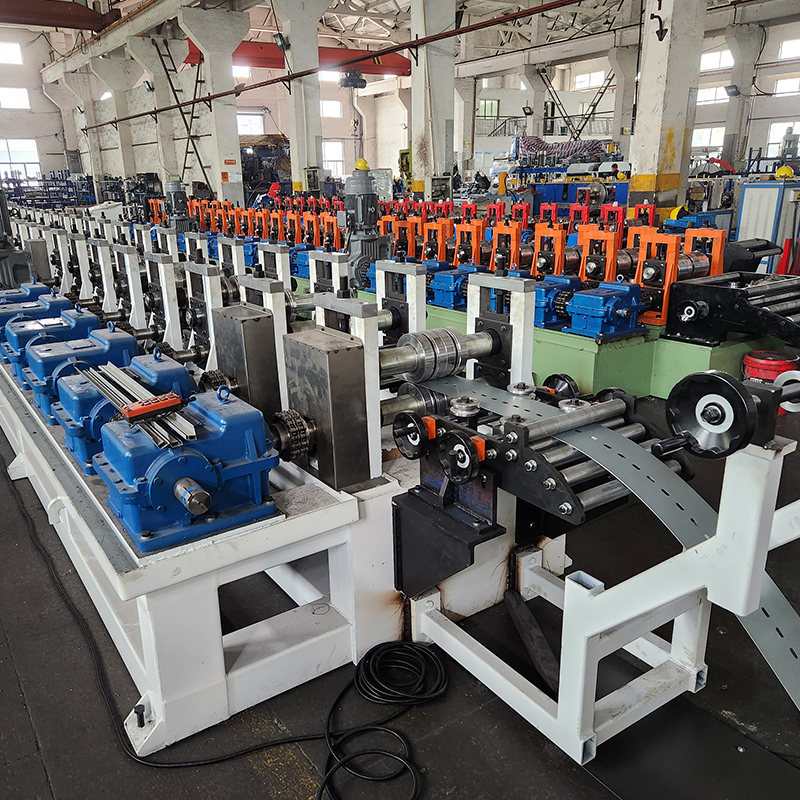

5. Multi-pass roll forming for superior quality
Utilizes a multi-pass progressive cold-roll forming process with precisely designed cross-sectional transitions. The layout of forming passes is scientifically optimized, accommodating a wide range of galvanized strip steel hardness levels while preventing damage to the zinc coating during rolling. The rollers are made of Cr12MoV steel, undergo integral quenching to achieve a hardness of HRC 56–62, and offer excellent wear resistance. High forming precision and consistency meet the demands of mass production.

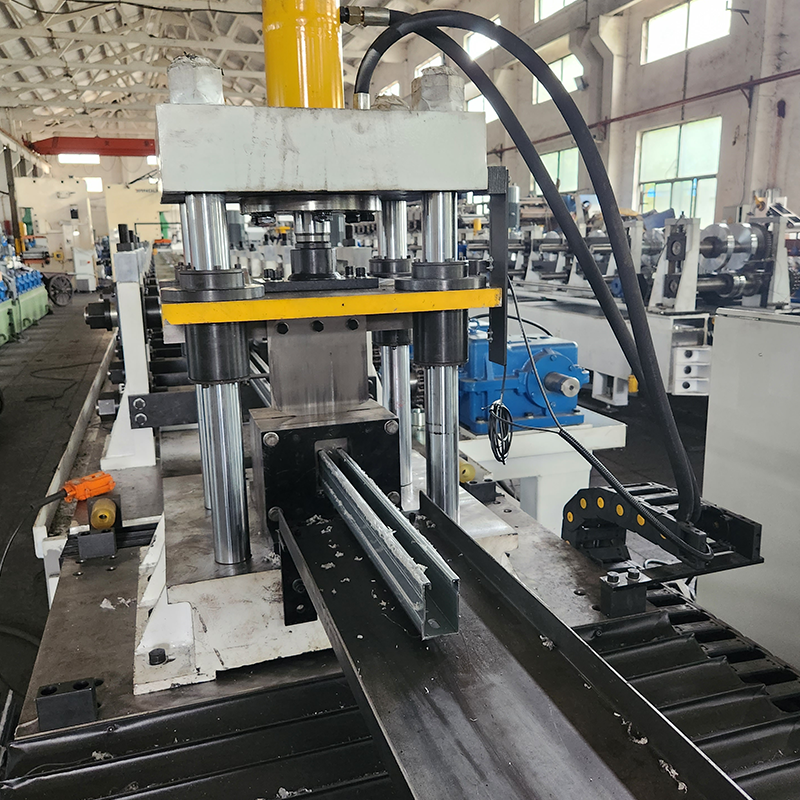

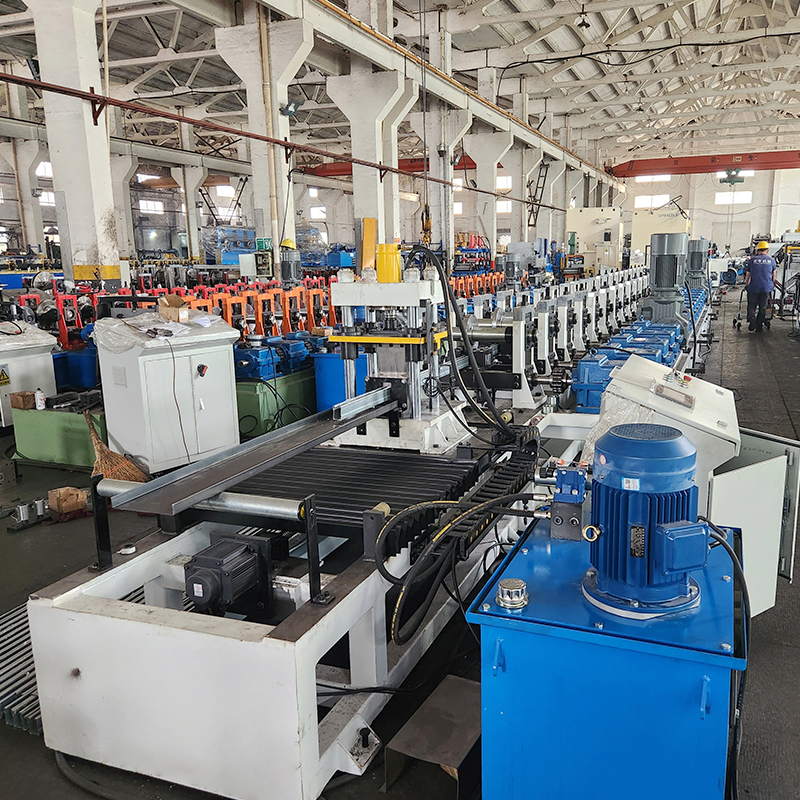

6. Servo-tracking hydraulic cutting for continuous, non-stop operation
Employs a servo-tracking hydraulic cutting system that automatically matches the speed of the continuously moving profile to perform synchronized, fixed-length cutting. There is no need to slow down or stop the machine; the system ensures high cutting precision and clean, smooth edges. Spring-back at the cut opening is < 1 mm. Length dimensions are achieved in a single pass strictly within drawing tolerances, eliminating the need for secondary processing.

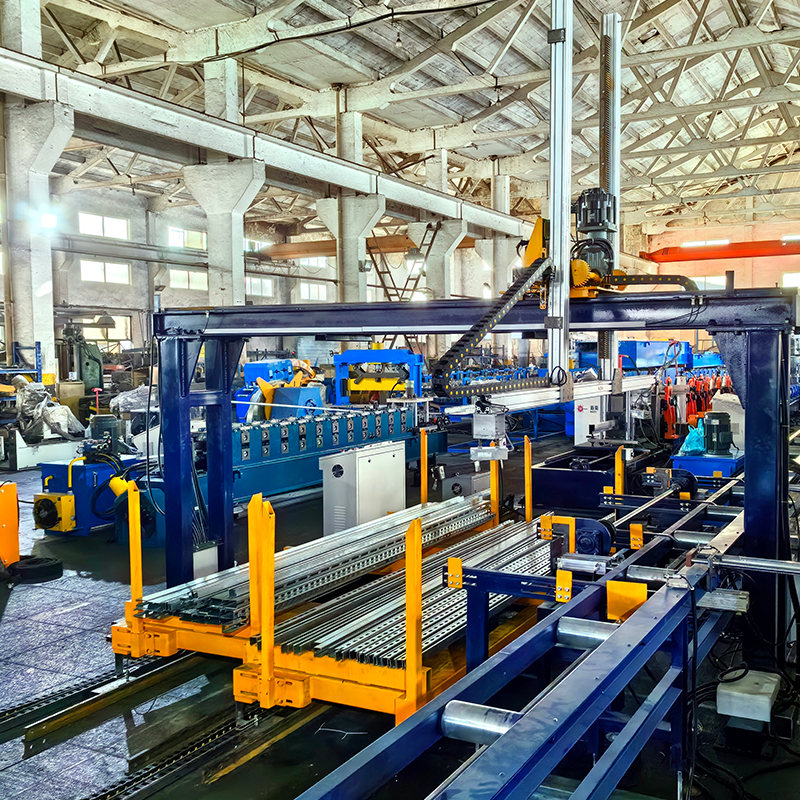

7. Automated palletizing for organized output
Equipped with an automatic palletizing system; finished profiles are conveyed automatically to the palletizing station. Stacking is performed automatically according to preset programs, ensuring neat and orderly arrangement. Manual handling is eliminated, significantly reducing labor intensity.
8. Cold-roll forming: Cost reduction and efficiency gains
Replacing hot stamping with cold-roll forming reduces equipment investment costs by approximately 30%. Cold-roll forming eliminates the need for heating equipment and complex temperature control systems, resulting in lower energy consumption. Additionally, the process takes place at ambient temperature; the absence of excessive heat prevents oxidation and material quality loss.
9. Intelligent control for ease of operation
Features fully automated PLC control and a touchscreen HMI for intuitive, convenient parameter setting. The entire line—from uncoiling to palletizing—is automated, requiring only 1–2 operators for monitoring. Automatic fault diagnosis and alarm functions facilitate rapid troubleshooting and maintenance.
III. Technical Parameters
Item Parameter
Applicable materials: Galvanized sheet, Al-Zn coated sheet, etc.
Material thickness: 1.0–3.0 mm

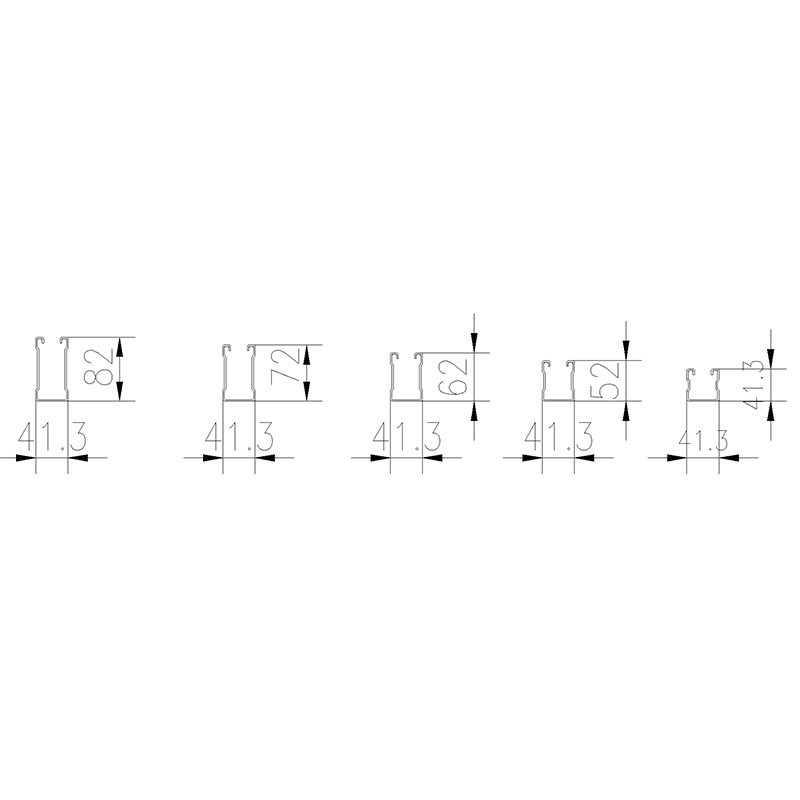

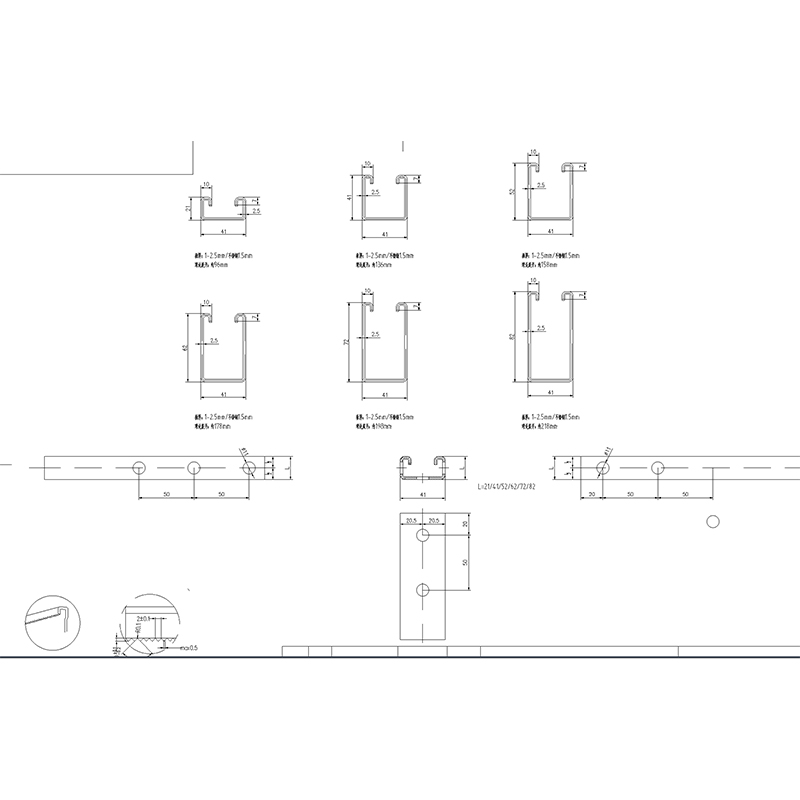

Side height range: 21–82 mm (including specifications such as 41×21, 41×41, 41×52, 41×62, 41×82)
Side ribbing Switchable (one-touch toggle)
Specification changeover: PLC automatic adjustment; completed in 3–5 minutes
Production line speed: 4–8 m/min
Main unit forming speed: 10–30 m/min
Forming precision ≤±0.5 mm
Punching method: Servo feeding + mechanical press punching
Cutting method: Servo-tracking hydraulic cutting
Cut-end spring-back ≤1 mm
Forming stands: 17–28 stands
Roller material: Cr12MoV, HRC 56–62
Roller shaft material 40Cr, HB 280
Transmission method: Gearbox drive
Control system: PLC, fully automatic control
Operators: 1–2 persons
Equipment footprint: Approx. 39 m (L) × 3 m (W)
IV. Production Process

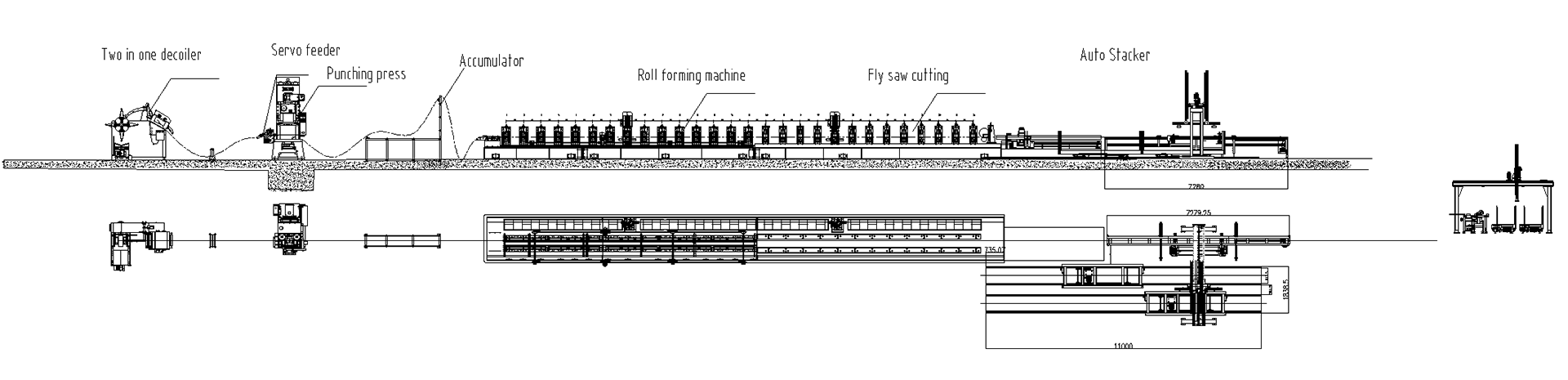

Uncoiling & Leveling → Servo Feeding & Punching → Guided Infeed → Roll Forming → Servo-Tracking Cut-to-Length → Stacking & Discharge
Process Step Description
Uncoiling & Leveling: The uncoiler holds the steel coil; a multi-roller leveler performs precision leveling to eliminate internal stress.
Servo Feeding & Punching: A servo system ensures precise positioning; the punch press creates mounting holes, connection holes, etc.
Guided Infeed: Automatic strip guidance and alignment ensure smooth entry into the main forming unit.
Roll Forming: Multi-stage progressive cold-roll forming; adjustable side height (21–82 mm); optional ribbing.
Servo-Tracking Cut-to-Length: Servo-controlled synchronous cutting; cuts to fixed lengths online without stopping the line.
Stacking & Discharge: Finished products are automatically stacked and discharged neatly.
V. Application Areas
The mounting products manufactured by solar PV mounting cold-roll forming machines are widely used in the following sectors:
Ground-mounted PV power plants: Large-scale ground plants and desert/Gobi PV projects—comprehensive specifications (covering the full 21–82mm range) to meet diverse design requirements.
Distributed rooftop PV: Industrial, commercial, and residential rooftop systems—1–3mm thickness suits lightweight rooftop load requirements; optional ribbing function available.
Agrivoltaics/Aquavoltaics: PV mounting structures for agricultural greenhouses and fish ponds—ribbing enhances profile strength, ensuring safety for long-span structures.
Tracking mounting systems: Horizontal single-axis, tilted single-axis, and other tracking mounts—high-precision forming ensures the long-term stable operation of tracking systems.
PV carports: PV shading structures for parking lots—aesthetically pleasing profiles with flexible specifications.
BIPV (Building-Integrated Photovoltaics): Integrated PV-building projects—ribbing can be disabled to ensure a smooth, attractive profile surface.
VI. Service & Support
Solution Design: Personalized equipment selection and production line layout based on customer product drawings, capacity requirements, and target markets.
Custom Manufacturing: Support for non-standard customization, with full oversight from roll design to complete line manufacturing.
Installation & Commissioning: On-site installation, commissioning, and operator training provided by engineers to ensure rapid production startup.
After-Sales Support: Long-term technical consultation and spare parts supply; engineers hold valid visas and are available for on-site service worldwide at any time.
Continuous Optimization: Equipment modification and capacity upgrade services available to adapt to changing production needs.
VII. Why Choose Us
Nearly 20 years of manufacturing experience: Mature technology, refined processes, and reliable quality
One machine covers the full range: One-touch switching between side heights of 21–82mm—no mold changes required
Optional ribbing: One-touch control to enable or disable the feature—one machine meets both requirements
Specialized in 1–3mm thick plate: Scientifically optimized forming stages ensuring effective protection of the galvanized coating
Direct manufacturer: No middlemen, offering excellent value for money
Global service network: Engineers hold all necessary visas, ensuring rapid response
