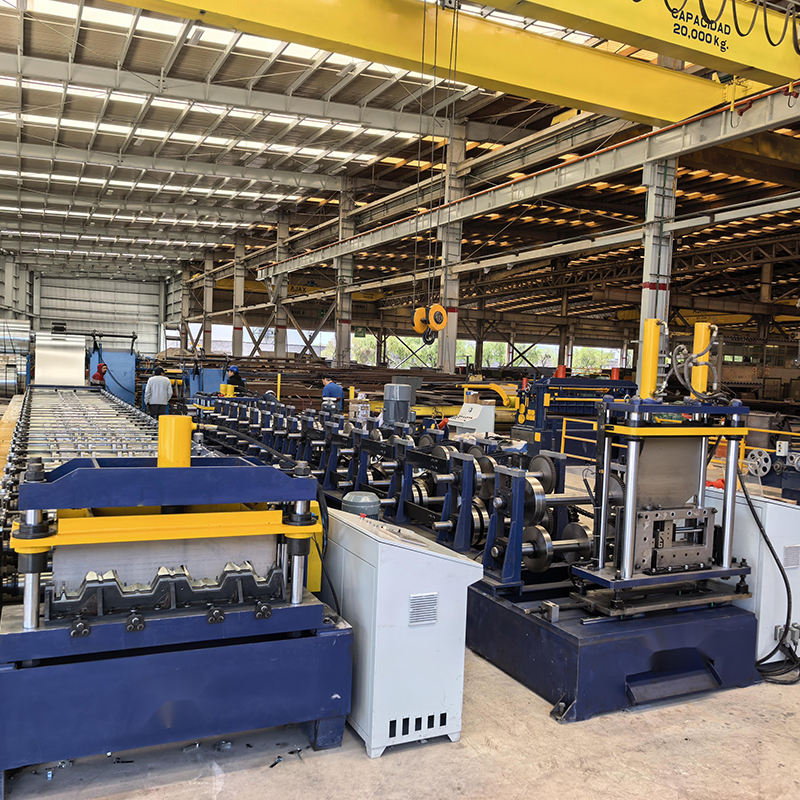

I.Equipment Introduction
The C/Z/U Quick-Change Roll Forming Machine is specialized cold-roll forming equipment designed for the production of C-section, Z-section, and U-section steel purlins. These profiles are fundamental components widely used in photovoltaic mounting systems, warehouse racking, and steel structural frameworks; their cross-sectional precision and dimensional consistency directly determine the quality of subsequent assembly and structural safety.
Utilizing a continuous cold-roll forming process, the machine transforms galvanized steel coils into finished C, Z, or U profiles through an integrated workflow that includes uncoiling, guided feeding, leveling, hydraulic punching, roll forming, hydraulic cutting, and discharge.
The entire line features fully automatic PLC control and a touchscreen HMI, ensuring a continuous, automated operation from uncoiling to the discharge of finished products. A single machine can produce all three profile types—C, Z, and U—enabling "flexible production with one machine for three profiles." It integrates an online hydraulic punching function that accurately punches holes at preset intervals prior to forming; punching and forming occur synchronously, eliminating the need for secondary processing. The equipment accommodates various materials—such as galvanized steel, Al-Zn coated steel, and black steel—with thicknesses ranging from 1.0 mm to 3.0 mm, and can produce specifications including C80–300, Z80–300, and U80–300 profiles (widths of 80–300 mm). Requiring only one operator, this machine is a core asset for manufacturers in sectors such as photovoltaic mounting, warehouse racking, and light steel structures, helping them reduce costs and enhance efficiency.
II. Core Advantages and Selling Points
(1) One Machine, Three Profiles; Flexible Production
This is the core advantage distinguishing this equipment from conventional single-specification production lines.
Traditional cold-roll forming equipment is typically customized for a single specification; changing profiles requires dismantling rollers and repeated adjustments, resulting in long downtimes and high costs. This equipment features a modular design, enabling the production of three profile types—C-sections, Z-sections, and U-sections—on a single machine. It accommodates various specifications, covering a common width range of 80–300mm. Profile switching is achieved via a one-touch operation on the PLC touchscreen. No mold changes or specialized technicians are required; standard operators can handle the switch. This significantly boosts equipment utilization and drastically shortens lead times for small-batch, customized orders.
(2) Integrated In-line Hydraulic Punching and Forming
The equipment integrates an in-line hydraulic punching system, performing precise punching of mounting holes, connection holes, and other patterns before the steel strip enters the forming unit. Punching and forming occur synchronously and continuously, eliminating the need for separate punching stages, secondary positioning, or intermediate material handling.
Higher Precision: Punching is performed on the flat strip, ensuring accurate positioning and keeping hole location deviation within ±0.5mm.
Higher Efficiency: Punching and forming are completed simultaneously, adding no extra time to the production cycle.
Lower Cost: Eliminates the need for separate punching equipment and operators; two processes are completed in a single step.
High Adaptability: Hole spacing and patterns can be configured to meet customer requirements, allowing for flexible handling of diverse orders.
(3) High-Precision Forming and Superior Quality
The system employs a multi-pass progressive cold-roll forming process. Mold designs and forming parameters are optimized using precision algorithms to ensure product accuracy at the source. Forming precision reaches ±0.5mm, meeting industry standards for applications such as photovoltaic mounting systems, warehouse racking, and steel structural components. The multi-pass roller design ensures precise profile dimensions and stable cross-sections. Key components utilize Cr12MoV die steel subjected to vacuum heat treatment, resulting in a roller lifespan three times that of standard rollers. The products meet strict standards for straightness and twist, effectively preventing assembly misalignment and ensuring a high product pass rate.
(4) High-Efficiency Production and Leading Capacity
The integrated line automates the entire process—from uncoiling and leveling to punching, forming, and cutting. Operating speeds reach 30 meters per minute (adjustable based on material type and thickness), with punching and forming performed synchronously to eliminate wasted time. Fully automated production allows a single operator to manage the entire line, resulting in efficiency gains several times higher than traditional production methods.
(5) Significant Labor Savings and Reduced Overall Costs
The CZU purlin cold-roll forming machine requires only one operator; the line is highly automated, ensuring continuous operation from uncoiling to discharge. Labor costs are reduced by over 60%, effectively eliminating the inefficiencies and high labor intensity associated with traditional production lines. High material utilization rates and long warranty periods for key components significantly lower operation and maintenance costs.
(6) Cold-Forming Process: Cost-Effective and Energy-Saving
Adopting the cold-roll forming process instead of hot stamping reduces initial equipment investment costs by approximately 30%. Cold-roll forming eliminates the need for heating equipment and complex temperature control systems, resulting in lower energy consumption. Since the process occurs at ambient temperature, the material's metallurgical properties remain unchanged, yielding a more durable and safe finished product. Compared to traditional hot-rolling, it saves 30% in material usage while achieving equivalent structural strength.
(7) Robust, Durable, and Reliable
The machine frame features a heavy-duty welded steel structure that has undergone aging treatment; it offers high rigidity and excellent vibration resistance, ensuring no deformation during long-term operation.
Rollers are made from high-quality Cr12MoV die steel and undergo vacuum heat treatment, ensuring high hardness and superior wear resistance.
The hydraulic punching system delivers high force and precision, specifically designed for processing 1–3mm thick plates.
Key electrical components utilize internationally renowned brands, such as Siemens PLCs.
Low failure rates and a long service life provide a solid foundation for stable, long-term production.
(8) Intelligent Control and Easy Operation
Fully automated PLC control with a high-definition touchscreen interface enables digital management of the entire process. Operators can configure parameters—such as profile specifications, production speed, punching intervals, and cut lengths—with a single touch, and the system automatically adjusts settings accordingly. Equipped with real-time monitoring and fault warning systems, the machine automatically alerts operators to anomalies and displays the cause of the fault. New operators can work independently after just 1–2 days of training.
III. Technical Parameters
Item Parameter
Applicable materials: Galvanized steel, Al-Zn coated steel, black steel strip, etc.
Material thickness: 1.0–3.0 mm

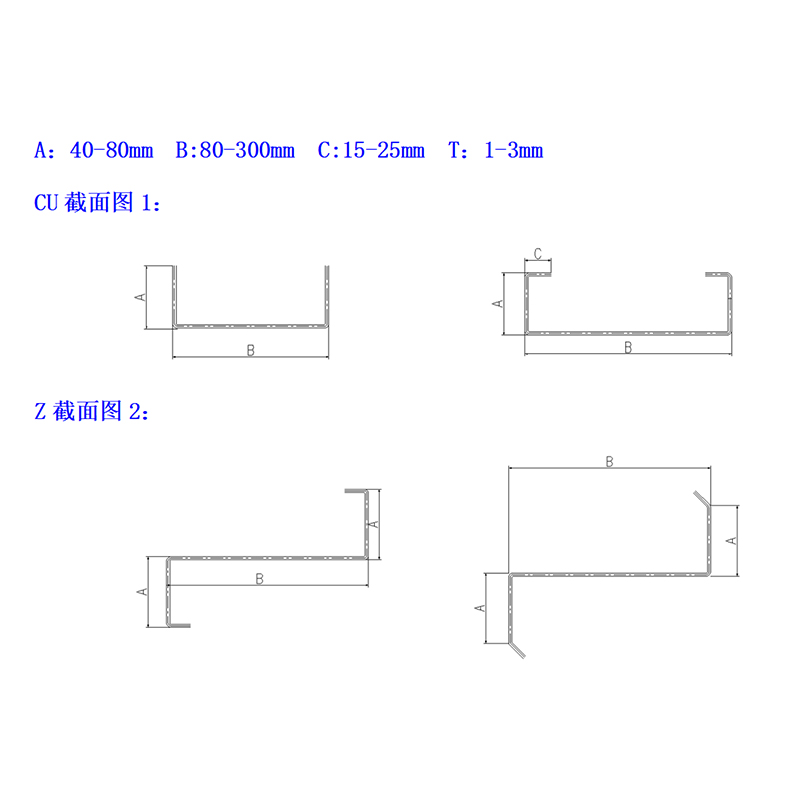

Forming specifications C80–300 / Z80–300 / U80–300 profiles
Three-in-one capability C-profile + Z-profile + U-profile (one-touch switching)
Forming precision ≤±0.5 mm
Punching precision ≤±0.5 mm
Operating speed: 30 m/min (varies based on material and thickness)
Punching method: Inline hydraulic punching (punching and forming completed simultaneously)

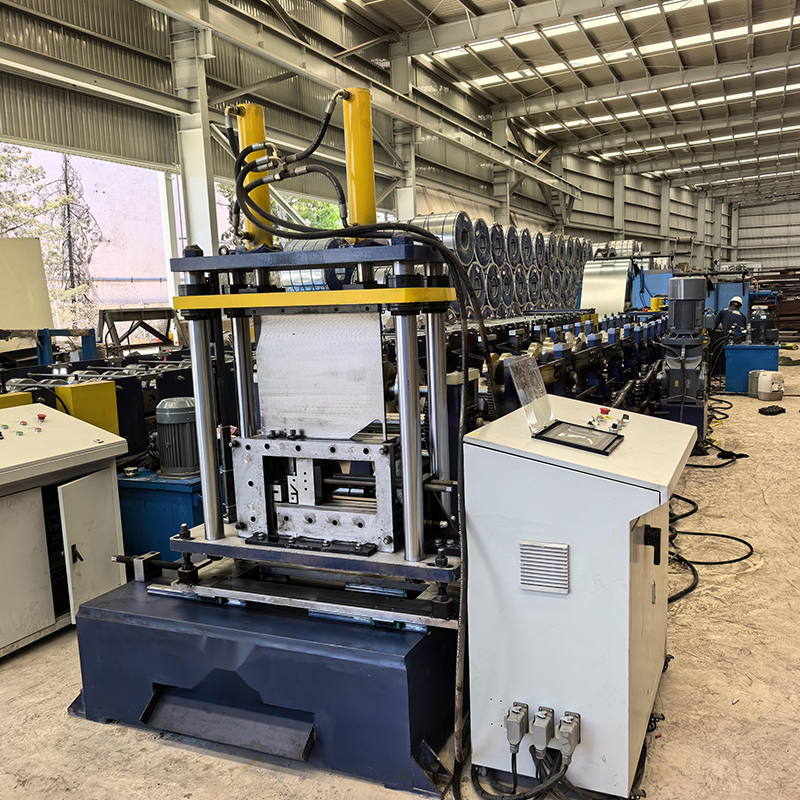

Cutting method: Hydraulic cutting
Roller material: Cr12MoV (vacuum heat-treated)
Control system: Fully automatic PLC control
Operators 1 person
IV. Production Process

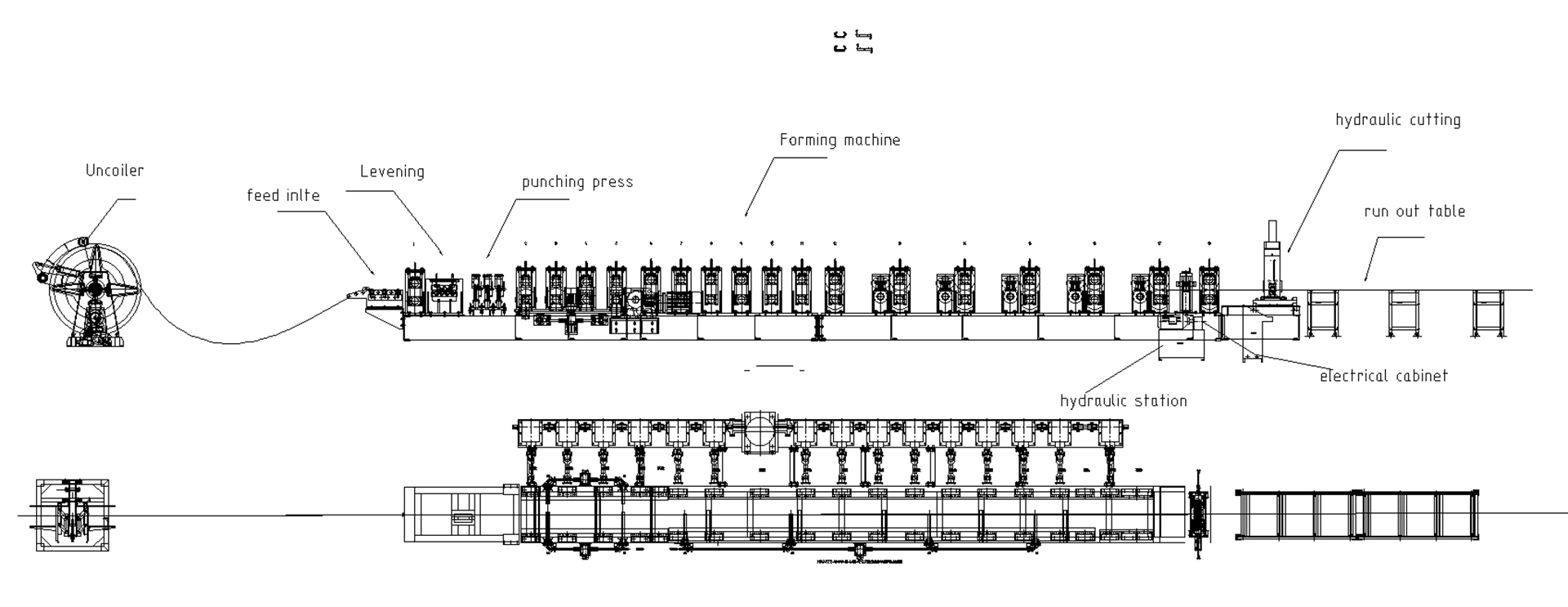

Uncoiling → Guided Feeding → Leveling → Hydraulic Punching → Roll Forming → Hydraulic Cutting → Discharge
Process Description
Uncoiling: The uncoiler supports the steel coil and ensures stable material feeding.
Guided Feeding: Automatic material guidance and alignment ensure the steel strip enters the leveling unit in the correct position.

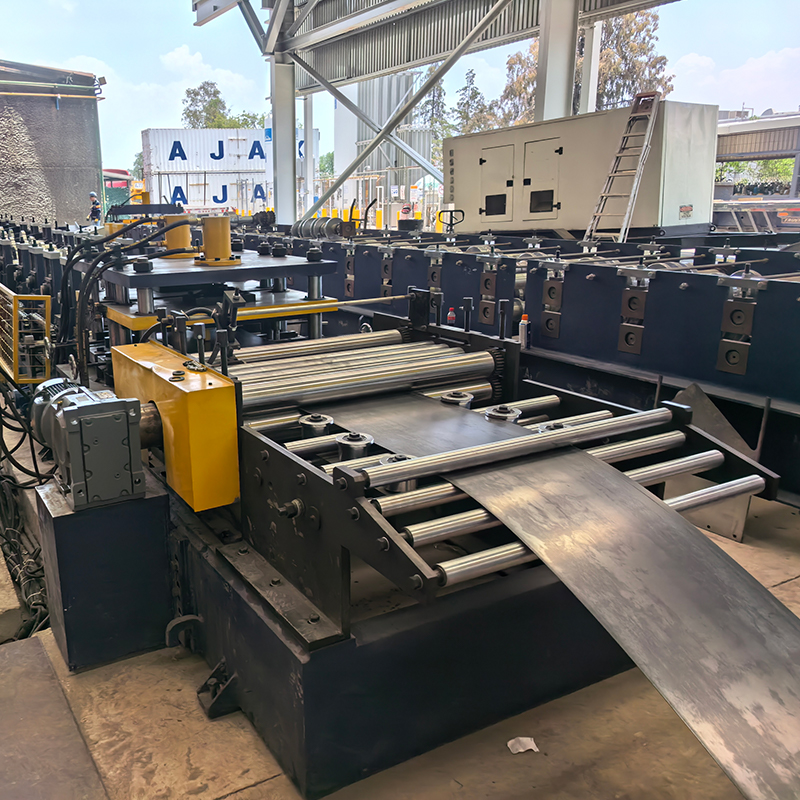

Leveling: A multi-roller leveler performs precision leveling to eliminate internal material stress and ensure accuracy in subsequent forming stages.
Hydraulic Punching: Inline hydraulic punching creates mounting holes, connection holes, etc., at preset intervals.
Roll Forming: Multi-pass progressive cold-roll forming (with one-touch switching between C, Z, and U profiles) gradually shapes the steel strip into the required cross-section.
Hydraulic Cutting: Hydraulic fixed-length cutting ensures high precision and clean, smooth cut edges.

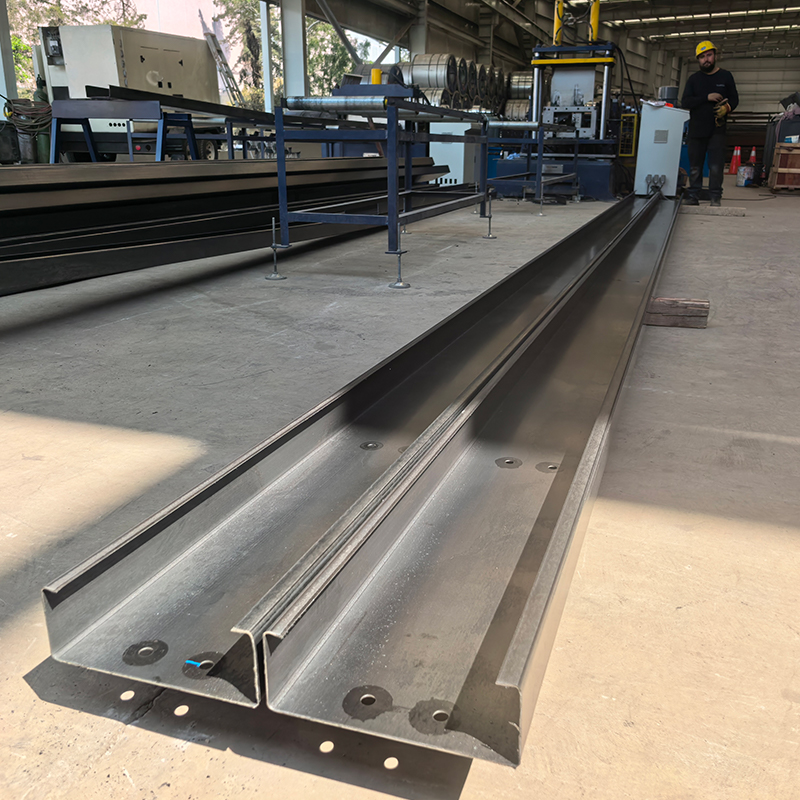

Discharge: Finished products are discharged in an orderly manner.
V. Application Areas
The C-, Z-, and U-shaped steel profiles produced by the CZU cold-roll forming machine are widely used in the following sectors:
New Energy (Photovoltaics): Core structural profiles for PV mounting systems and solar tracking mounts—C/Z/U-shaped steel serves as a primary raw material for PV mounting structures, with high market demand. Z-shaped steel is frequently used in continuous purlin systems for PV mounts, making it particularly suitable for the installation requirements of large-span PV arrays.
Steel Construction: Structural components such as C/Z-shaped steel purlins, light-gauge steel framing, and floor decking—Z-shaped steel purlins are widely used in the steel structures of industrial plants due to their ease of overlapping and excellent continuity.
Warehousing and Logistics: Profiles such as uprights and beams for storage racks—C/U-shaped steel serves as a fundamental component of racking systems.
Seismic Bracing: Core profiles for building seismic bracing systems.
Automotive Manufacturing: Lightweight automotive profiles such as vehicle body panels and chassis longitudinal beams.
Electrical Engineering: Supports for the electrical industry, such as cable trays and electrical cabinet frameworks.
VI. Service & Support
Solution Design: Personalized equipment selection and production line layout based on customer product drawings, capacity requirements, and target markets.
Custom Manufacturing: Support for non-standard customization, with full control over the entire process—from roll design to complete line manufacturing.
Installation & Commissioning: On-site installation, commissioning, and operator training provided by engineers to ensure rapid production startup.
After-Sales Support: Long-term technical consultation and spare parts supply; engineers hold valid visas and are available for on-site service worldwide at any time.
Continuous Optimization: Equipment modification and capacity upgrade services available to adapt to changing production needs.
VII. Why Choose Us
Nearly 20 years of manufacturing experience: Mature technology, refined processes, and reliable quality
Three-in-One Capability: Produces C-channel, Z-channel, and U-channel profiles on a single machine—eliminating the need for redundant investment
Integrated Punching and Forming: Online hydraulic punching and profile forming occur simultaneously, saving on equipment, labor, and time
High-Precision Manufacturing: Forming precision of ±0.5mm, meeting industry standards across various sectors
High Efficiency and Energy Savings: Operated by a single person with a running speed of 30m/min, significantly reducing labor costs
Direct Manufacturer: No middlemen, offering excellent value for money
Global Service Network: Engineers hold all necessary visas, ensuring rapid response
