I. Equipment Introduction
The P-beam roll forming machine with integrated laser longitudinal seam welding is an automated system designed specifically for manufacturing P-shaped beams (P-beams) for storage racks. P-beams serve as the primary load-bearing components in beam-type racking systems and are widely used for the storage and display of goods in warehouses, shopping malls, and various retail environments.

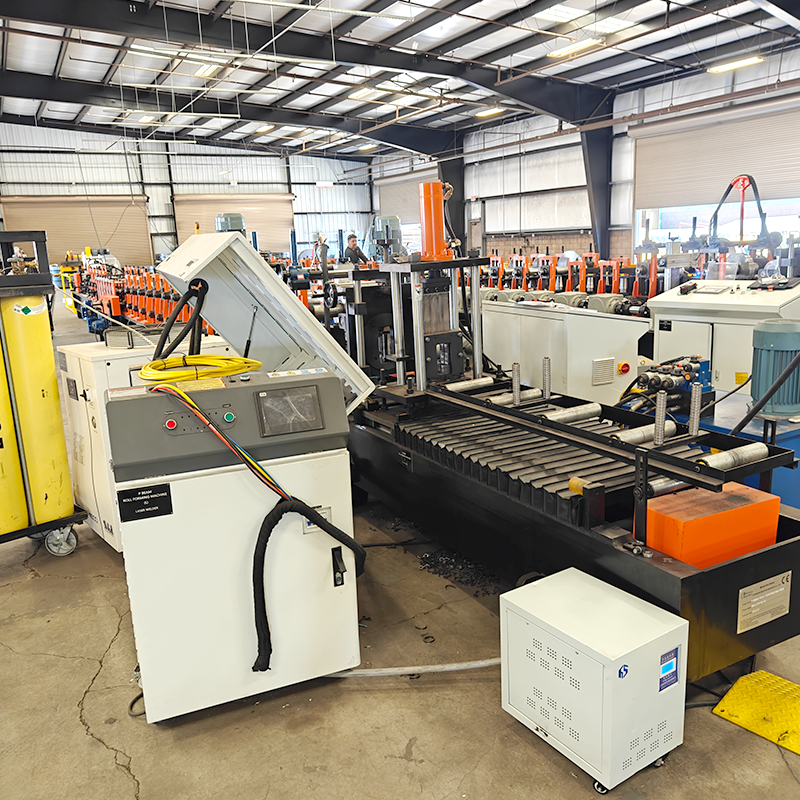

This equipment utilizes a continuous cold-roll forming process combined with in-line laser longitudinal seam welding technology. It executes the entire production sequence—including uncoiling, leveling, notching, cold-roll forming, laser welding, and cut-to-length shearing—in a single pass, directly yielding finished P-beams. By integrating notching, forming, laser welding, and shearing into one line, the system achieves a true "all-in-one" solution where the output is a finished product.

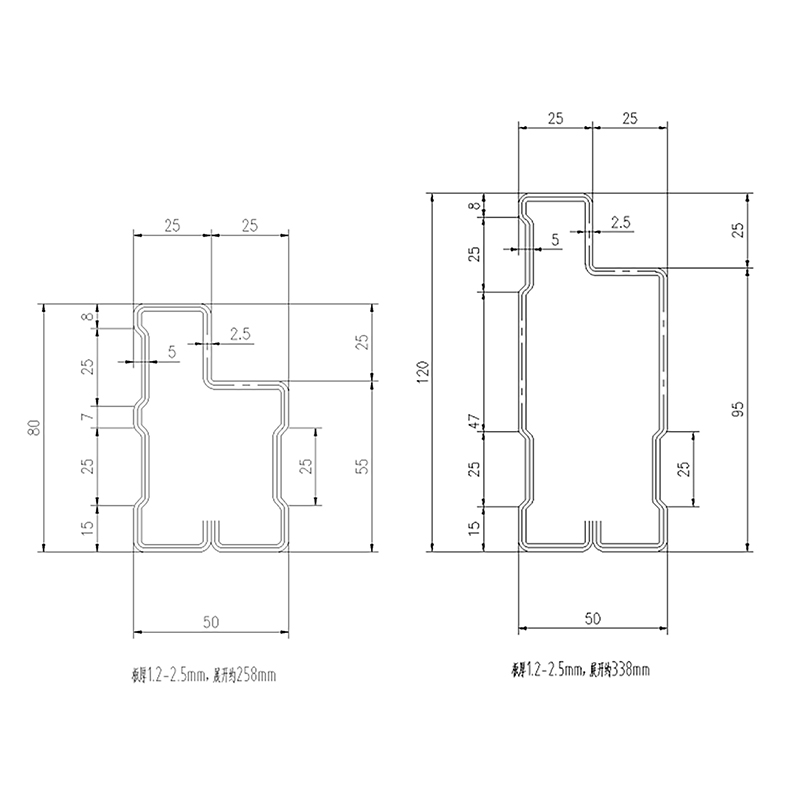

The P-beam features a closed cross-sectional design shaped like the letter "P" (comprising vertical and horizontal sections). After forming, the edges of the steel strip are joined and locked via laser longitudinal seam welding to create a closed, load-bearing structure. Thanks to its unique flange design, the P-beam offers superior load-bearing capacity and stability, making it one of the most common beam types used in beam-type racking systems.
The equipment is compatible with various raw materials—such as cold-rolled coils, galvanized coils, and high-strength steel—handling thicknesses ranging from 1.0 mm to 2.0 mm. Strip widths can be customized to meet specific requirements, enabling the production of a full range of beams for light-, medium-, and heavy-duty racking systems.
II. Core Advantages and Selling Points
1. Laser Straight-Seam Welding: Weld Strength Exceeds Base Material
Utilizes a high-energy-density laser beam for straight-seam welding; the resulting weld strength typically exceeds that of the base material, enabling it to withstand high-intensity loads.
The heat-affected zone is minimal, and deformation is negligible, ensuring the dimensional accuracy of the beam remains unaffected by welding heat.
Laser welding allows for single-sided welding with double-sided bead formation, resulting in aesthetically pleasing and robust welds.
Consistent weld quality and low defect rates effectively ensure the overall safety of the racking system.
2. Closed-Section Design: Superior Load-Bearing Capacity
The P-beam features a closed-section structure, offering better bending and torsional resistance than open-section designs.
A unique flange design significantly enhances load-bearing capacity and stability.
With wall thicknesses ranging from 1.5mm to 2.5mm, the single-level load capacity reaches 800–4000kg, meeting the needs of various warehousing scenarios.
Compared to traditional open-section beams, load-bearing capacity is increased by 20%–30% for the same amount of material used.
3. Integrated Notching, Forming, and Welding: Exponential Efficiency Gains
The production line integrates notching, cold-roll forming, laser welding, and cut-to-length operations into a single system.
Multiple processes are completed on one machine, yielding high-quality products that require no secondary processing.
Drastically reduces material handling between stages and shortens production cycles by over 40%.
The entire line requires only 1–2 operators, significantly lowering labor costs.
4. High-Precision Forming: Superior Quality
Employs a multi-stage progressive cold-roll forming process, ensuring high dimensional accuracy and product consistency.
Rollers are made from GCr15 or Cr12MoV steel, treated with vacuum quenching and cryogenic processing to achieve a hardness of HRC 58–62° and excellent wear resistance.
Utilizes 20–26 sets of forming rollers to ensure complex profiles are formed accurately in a single pass.
Profile dimensional accuracy is controlled within 0.5mm.
5. High welding speed, suitable for mass production
Laser welding speeds reach 5–8 meters per minute; integration with high-speed roll-forming lines enables efficient, continuous production
Capable of welding long seams rapidly, meeting the demands of large-scale manufacturing
Synchronized punching and welding enhance efficiency and ensure smooth, continuous equipment operation
Automated welding process eliminates the need for specialized welders, reducing reliance on highly skilled labor
6. Versatile and flexible production
A single machine can produce P-beam products in various specifications
Rapid switching between different cross-sectional sizes is achieved by changing specific rollers and adjusting parameters
Suitable for the production of light-, medium-, and heavy-duty rack beams
7. Aesthetic weld seams requiring no post-processing
Laser welding yields a high-quality surface finish with smooth, attractive seams
No scraping or finishing of inner or outer surfaces is required; the part is ready immediately after welding
Reduces the need for subsequent grinding or polishing, further lowering costs
8. Intelligent control and ease of operation
Fully automated PLC control with a touchscreen HMI makes parameter settings intuitive and convenient
Servo-linked integration of welding (TIG/laser), cutting saws, and discharge racks ensures smooth, continuous operation
Automatic fault diagnosis and alarm systems facilitate rapid troubleshooting and maintenance
Significantly lowers operator skill requirements
III. Technical Specifications
Item Parameter
Applicable Materials: Cold-rolled coils, galvanized coils, high-strength steel
Material Thickness 0.8–3.0 mm (customizable)
Material Width: Customized according to client requirements
P-beam Specifications 30×50 mm to 50×160 mm (customizable)
Forming Stations: 20–26 sets of rollers
Forming Speed: 5–15 m/min (customizable)
Laser Welding Speed: 5–8 m/min
Forming Precision ≤±0.5 mm
Roller Material GCr15 / Cr12MoV, HRC 58–62°
Welding Method: Laser longitudinal seam welding / Argon arc welding (optional)
Cutting Method: High-speed cutting saw / Hydraulic cutting
Drive System: Gearbox drive / Servo drive
Electrical Control: PLC fully automatic control system
Operators: 1–2 persons
IV. Production Process

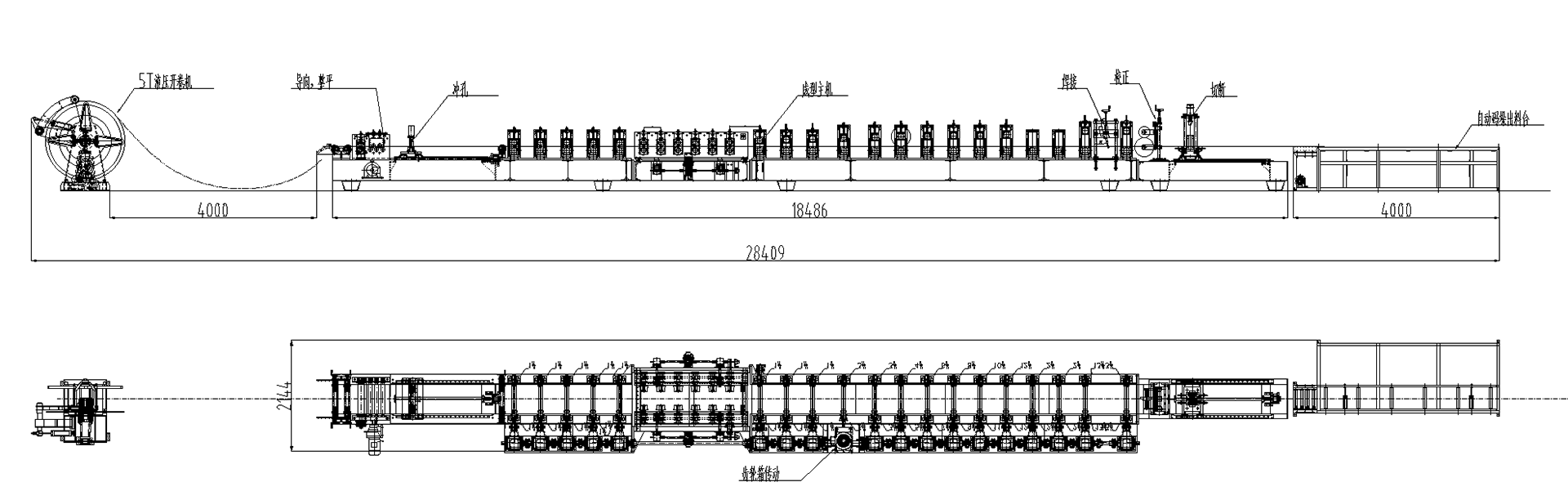

Uncoiling → Leveling → High-precision servo feeding/Notching → Guided feeding → Cold roll forming (P-shaped profile) → Laser longitudinal seam welding → Cut-to-length → Finished product discharge
Process Step Description
Uncoiling: Hydraulic or umbrella-type uncoiler supports the steel strip coil
Leveling: Multi-roller leveler performs precision leveling to eliminate internal material stress
Servo feeding & Notching: Servo system ensures precise positioning
Guided feeding: Automatic strip guidance and alignment ensure smooth feeding for various strip widths
Cold roll forming: Multi-pass progressive cold roll forming gradually shapes the strip into a closed P-shaped profile
Laser longitudinal seam welding: High-energy laser beam welds the closed seam; single-sided welding with double-sided bead formation

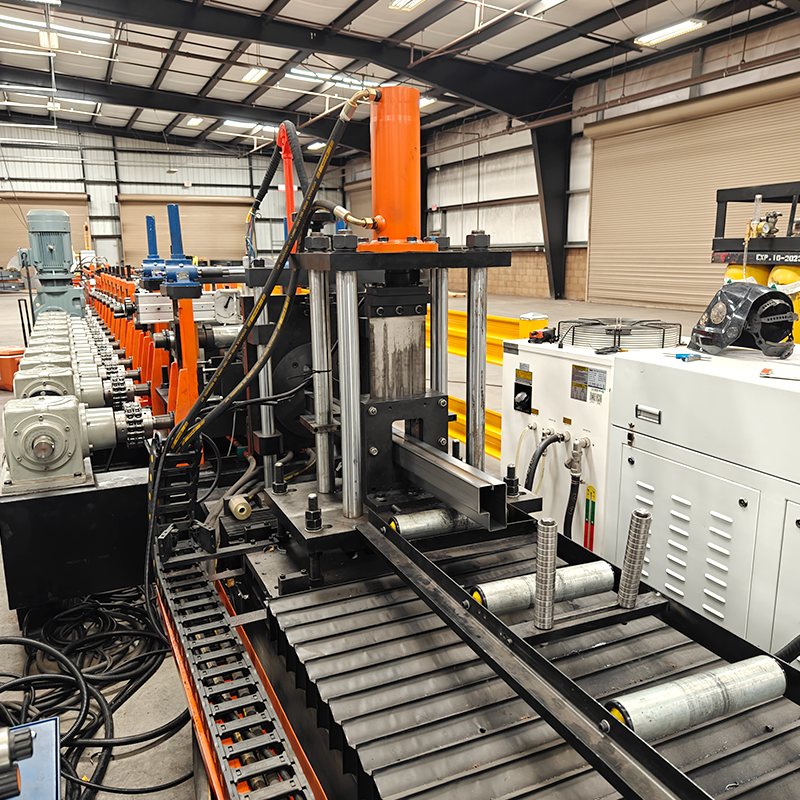

Cut-to-length: Automatic length measurement and high-speed saw cutting ensure high precision and smooth cut edges

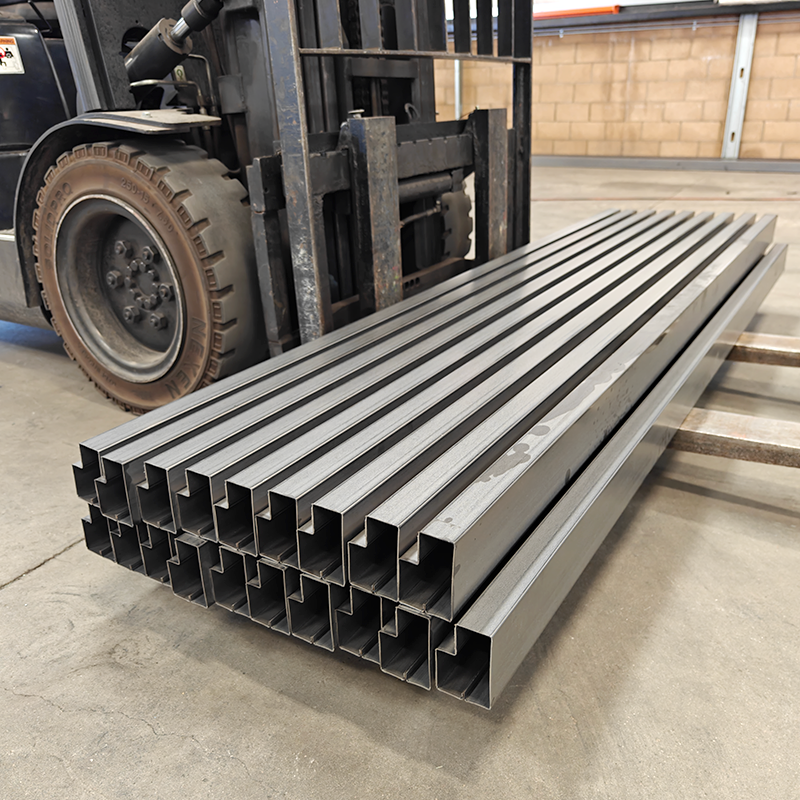

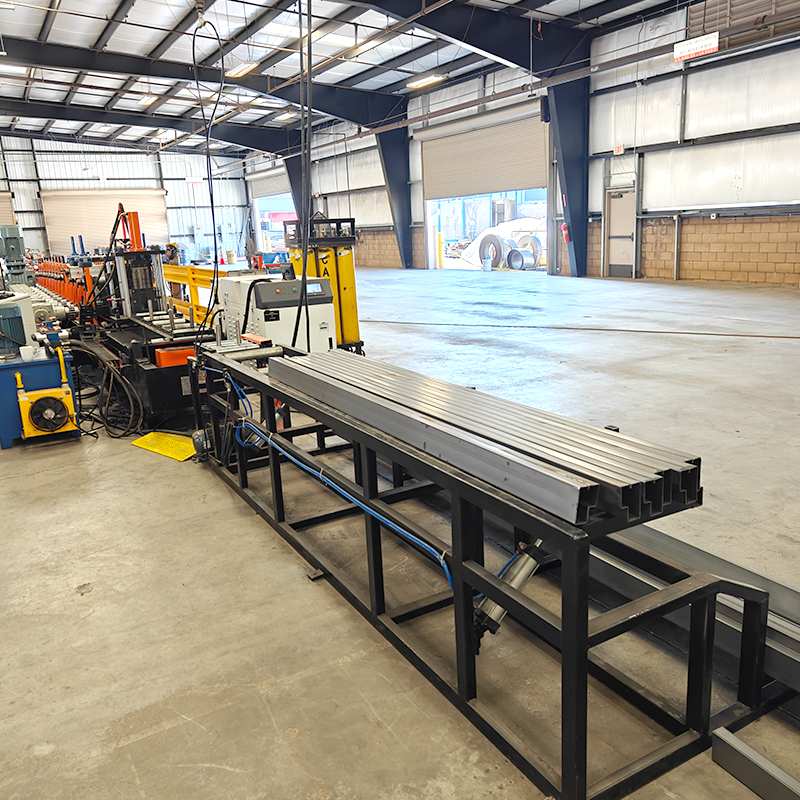

Finished product discharge: Discharge of finished products; smooth, continuous line operation
V. Application Areas
Thanks to their comprehensive advantages—including high load-bearing capacity, a closed-section profile, and superior weld strength—laser-welded longitudinal-seam P-beams are widely used in the following scenarios:
Heavy-duty storage racks (beam-type racks): P-beams are the most common type of beam for beam-type racking systems, widely used in heavy-duty racking setups across various industrial warehouses and logistics centers.
E-commerce logistics centers: Meeting the need for efficient access and storage of massive inventories, where high-load-capacity P-beams ensure rack stability and safety.
Manufacturing warehouses: Storage for raw materials and finished goods in various factories—utilizing high-load-capacity racking systems to support heavy cargo.
Supermarkets and retail: Product display and shelving in shopping malls and supermarkets.
Cold chain storage: Cold storage facilities and low-temperature environments—where high-strength steel and galvanized sheet materials meet the specific demands of these environments.
Pallet racking: Used for storing palletized unit loads; widely applied in sectors such as logistics, manufacturing, and retail.
VI. Service & Support
Solution Design: Personalized equipment selection and production line layout based on customer product drawings, capacity requirements, and target markets.
Custom Manufacturing: Support for non-standard customization, with full control over the entire process—from roll design to complete line manufacturing.
Installation & Commissioning: On-site installation, commissioning, and operator training provided by engineers to ensure rapid production startup.
After-Sales Support: Long-term technical consultation and spare parts supply; engineers hold valid visas and are available for on-site service worldwide at any time.
Continuous Optimization: Equipment modification and capacity upgrade services available to adapt to changing production needs.
VII. Why Choose Us
Nearly 20 years of manufacturing experience: Mature technology, refined processes, and reliable quality.
Specialized laser welding capabilities: Expert knowledge of laser longitudinal seam welding for rack beam production, delivering weld strength that exceeds that of the base material.
Integrated production advantages: Combines forming, welding, and cutting into a single machine process, delivering a finished product directly.
Direct manufacturer: No middlemen, offering excellent value for money.
Strong custom engineering capabilities: Ability to design various complex cold-roll forming lines tailored to specific customer requirements.
Global service network: Engineers hold all necessary visas, ensuring rapid response times.
Market-proven: Products exported to numerous countries and regions.
