The L-shaped corner light steel keel roll forming machine is used to produce L-shaped corner keels for building ceiling and decoration systems. The equipment employs a continuous roll forming process, ensuring dimensional stability and smooth edges, thus improving subsequent installation results. This product is mainly used for ceiling edging, wall corner decoration, and auxiliary structures for gypsum board installation, and is suitable for mass production by decoration material manufacturers.

L-shaped corner light steel keel roll forming machine – a professional manufacturer and expert in corner keel forming, offering precise, stable, and efficient production.

PREV: CU Opening and Closing Light Steel Keel Roll Forming Machine
NEXT: Triangular light steel keel Roll Forming Machine

Equipment Introduction

Parameter

Flowchart

Process Flow

Contact

Equipment Overview

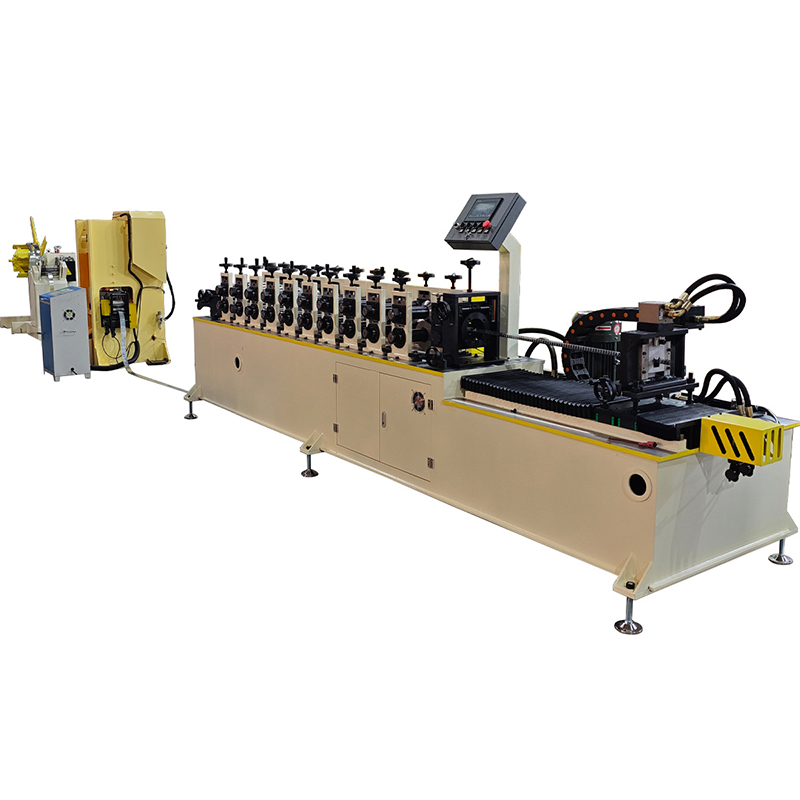

The L-shaped corner light steel keel roll forming machine is a professional cold-bending forming equipment specifically designed for producing L-shaped corner keels in building ceiling systems, decoration projects, and wall edging systems. L-shaped corner keels (Angle Bead / L Angle Keel) are architectural decorative profiles processed from continuous galvanized steel strips through a cold-bending process. They are mainly used for ceiling edging, wall corner protection, decorative line fixing, and building structural connections.
L-shaped corner keels are characterized by their light weight, high strength, easy installation, good corrosion resistance, and dimensional stability, making them an important auxiliary profile in modern building decoration systems. Compared to traditional aluminum alloy or wood edging materials, light steel corner keels offer better fire resistance and structural stability, meeting the safety and durability requirements of large commercial buildings, residential renovations, and public facilities.
The L-shaped corner light steel keel machine processes galvanized steel coils into standard L-shaped corner keel products through hydraulic uncoiling, automatic feeding, leveling and straightening, punching, continuous roll forming, length cutting, and automatic material collection.
The equipment employs multi-pass progressive cold bending forming technology, using precisely designed forming rollers to gradually change the cross-section of the steel strip, resulting in a stable 90° L-shaped structure. Compared to traditional bending methods, cold bending forming offers advantages such as high production efficiency, high material utilization, good product consistency, and low labor costs.
The L-shaped corner light steel keel machine is suitable for galvanized steel strips with a thickness of 0.3- 1.0 mm and can produce L-shaped corner keels of different widths, heights, and thicknesses according to customer needs. The equipment is highly automated and easy to operate, making it an important piece of equipment for building decoration material manufacturers to achieve continuous and large-scale production.


Core Advantages and Selling Points

Dedicated L-shaped Cross-section Forming Design for Stable Product Structure
The L-shaped corner light steel keel machine is specially designed for the structural characteristics of building edge trim profiles. By rationally distributing the deformation amount in each pass, the steel strip gradually forms a standard L-shaped cross-section.
The equipment guarantees:
Precise Angles
Smooth Edges
Stable Cross-section
High Dimensional Consistency
Avoiding problems such as angle deviation and edge deformation that are prone to occur in traditional bending processes.
The produced L-shaped corner keels can better match ceiling panels, wall decoration panels, and building edge trim structures, improving construction and installation efficiency.
Multi-pass Progressive Cold Bending Forming for Improved Product Quality

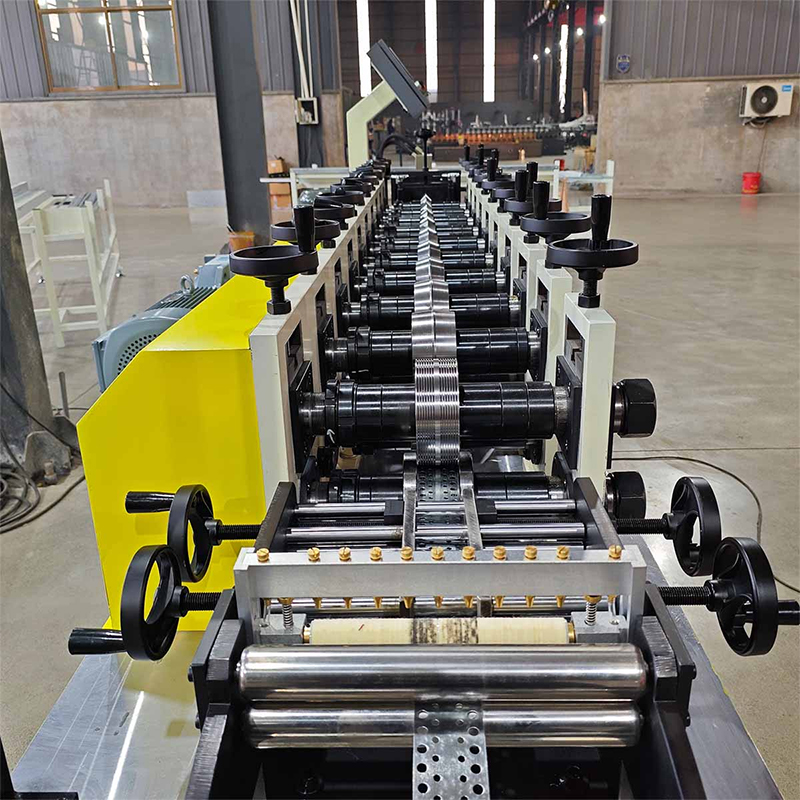

The equipment adopts a multi-pass continuous roller forming method, gradually completing the material bending through multiple forming stations.
Compared to single-pass bending processing, multi-pass cold bending forming has the following advantages:
Uniform Material Stress
Reduced Internal Stress
Reduced Springback
Improved Product Straightness
Ensuring Long-Term Stability
Especially suitable for mass production of building decorative profiles.
High-precision rolling system ensures consistent forming.
The rolling mill rolls are made of high-quality mold steel and heat-treated to improve wear resistance.
The precision rolling mill design effectively controls angle changes during the L-shaped corner keel forming process, ensuring uniform product specifications.
Roll advantages:
High wear resistance
Long service life
Long maintenance cycle
Stable forming accuracy
Suitable for continuous production environments.
Supports production of multiple specifications, improving equipment utilization.
The L-shaped corner light steel keel machine can be designed with different specifications according to customer needs.
Produces:
L15×15 corner keel
L20×20 corner keel
L25×25 corner keel
L30×30 corner keel
Customized corner profiles
By adjusting equipment parameters, the requirements for corner keel specifications in different construction projects can be met.
Online punching configuration improves installation convenience.

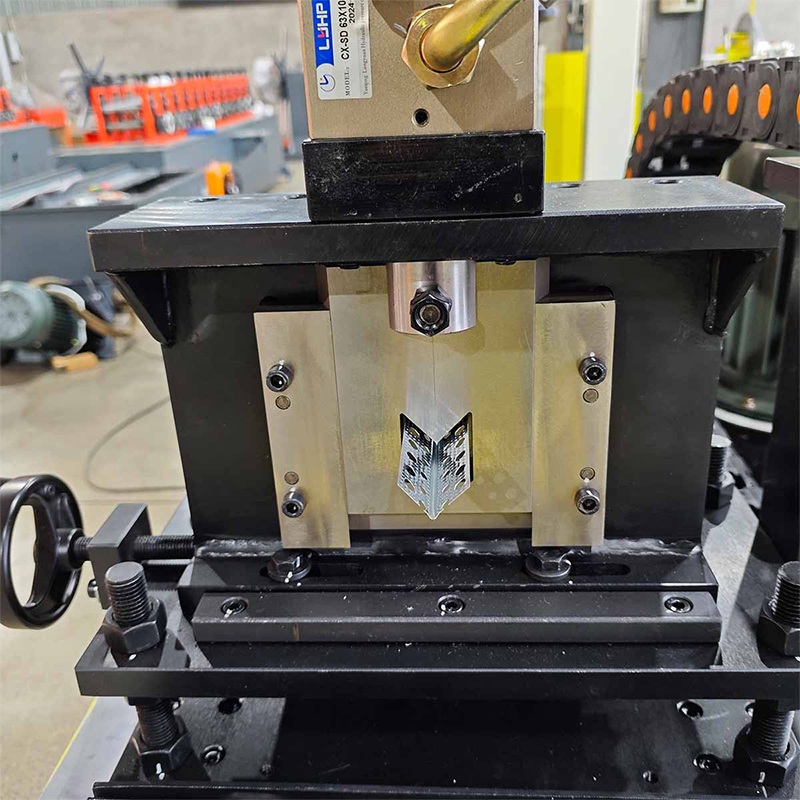

An online punching system can be added to the equipment according to customer product requirements.
The punching system enables:
Automatic positioning
Precise punching
Continuous processing
Reduced manual secondary processing
Increased product standardization
Online punched corner keels can be quickly installed, improving construction efficiency.
The automated control system reduces manual operation requirements
The equipment adopts a PLC automatic control system with a touch screen operating interface, realizing intelligent control of the production process.
Operators can set:
Production speed
Cutting length
Operating parameters
Equipment status
Fault information
Automated production reduces manual intervention and improves production stability.
Under normal production conditions, only 1-2 operators are needed to complete the entire line operation.
High-efficiency continuous production increases enterprise capacity
The L-shaped corner light steel keel machine adopts a continuous cold bending production mode, enabling continuous processing of steel coils.
Compared to traditional shearing and bending methods:
Faster production speed
Less material waste
Higher product consistency
Lower labor costs
Suitable for building material manufacturers to produce large quantities of orders.


Production Process

Hydraulic Uncoiling → Guided Feeding → Leveling and Correction → Punching → L-Shaped Roll Forming → Length Cutting → Automatic Reeling
Hydraulic Uncoiling: The hydraulic uncoiler stably supports the steel coil, enabling continuous automatic feeding.
Guided Feeding: Precisely controls the direction of the steel strip's entry, ensuring accurate positioning of the material within the forming system.
Leveling and Correction: Eliminates internal stress in the steel coil, improving material flatness.
Punching: Completes hole-positioning processing according to installation requirements.
L-Shaped Roll Forming: Multiple sets of rollers gradually complete a 90° bend, forming the steel strip into a standard L-shaped structure.
Length Cutting: Automatically cuts to the set length, ensuring uniform product specifications.
Automatic Reeling: Finished products are automatically arranged for convenient packaging and transportation.


Application Areas

L-shaped corner light steel keel machine products are widely used in:
Building ceiling systems: Used for edge finishing around ceilings, improving overall structural stability.
Interior decoration projects: Used for wall decoration, partition projects, and fixing decorative lines.
Commercial buildings: Used in large-scale decoration projects such as shopping malls, hotels, and office buildings.
Residential buildings: Used for ceiling and corner protection structures in residential decoration.
Public facilities: Suitable for building decoration projects in schools, hospitals, stations, etc.
Prefabricated buildings: Used as a supporting profile for light steel building systems.


Market Prospects

With the continuous development of the global building decoration industry, the market demand for light steel keel and supporting profiles is constantly growing.
Modern architecture increasingly emphasizes construction efficiency, safety performance, and environmental friendliness of materials. Light steel decorative systems, with their advantages of fast construction speed, stable quality, and excellent fire resistance, are gradually becoming an important choice in the building decoration industry.
As a basic profile in ceiling systems and decoration projects, the L-shaped corner keel, although simple in structure, has a wide range of applications and stable market demand. With the continuous increase in commercial buildings, residential decoration, and public building projects, the demand for automated corner keel production equipment is also constantly increasing.
In the future, the building materials industry will further develop towards automation and large-scale production. High-efficiency, high-precision cold bending forming equipment will become an important tool for corner keel manufacturers to enhance their competitiveness.


Service Support

Solution Design: We provide complete equipment solution design based on customer product specifications, production requirements, and production environment.
Equipment Customization: We support the customization of corner keel products with different sizes and cross-sections.
Installation and Commissioning: Professional engineers provide equipment installation, commissioning, and operation training.
Technical Services: We provide long-term support for production process optimization, equipment maintenance, and spare parts supply.
Upgrades and Retrofits: We provide automation upgrade solutions based on customer capacity expansion needs.


Why Choose Us

Nearly 20 years of experience in cold bending equipment manufacturing, possessing mature light steel keel production technology.
Specializing in equipment development for building profiles, our products cover various keel types.
Precision roll manufacturing technology ensures stable product dimensions.
Automated control systems improve production efficiency and reduce labor costs.
We support non-standard customization, providing complete solutions based on customer needs.
Direct supply from the source factory offers significant price advantages.
A comprehensive global service system supports overseas installation, commissioning, and long-term technical support.

Equipment Name

 L-Shaped Corner Light Steel Keel Machine

Applicable Materials

 Hot-dip galvanized steel strip, cold-rolled steel strip

Material Thickness

 0.3-1.0mm

Material Width

 Customized according to product specifications

Product

 L-shaped corner keel

Forming Speed

 20-50m/min

Forming Method

 Multi-pass cold bending roll forming

Number of Forming Passes

 10-16 passes

Transmission Method

 Chain drive or gearbox drive

Roll Material

 GCr15, Cr12MoV

Roll Hardness

 HRC58-62

Control Method

 PLC automatic control

Cutting Method

 Hydraulic cutting

Operators

 1-2 people
