Equipment Overview
The Dual-outlet Light Steel Keel Roll Forming Machine is a high-efficiency cold-bending forming equipment specifically designed for producing various light steel keel products for building partition systems, ceiling systems, and prefabricated buildings. This equipment adopts a dual-channel synchronous production structure, simultaneously outputting two light steel keel production lines from a single main unit, significantly improving production efficiency. It is an ideal piece of equipment for large-scale building material manufacturing enterprises to increase production capacity and reduce unit production costs.
Light steel keel, as an important component of modern building decoration systems, is mainly manufactured from hot-dip galvanized steel strip through continuous cold bending forming. Due to its advantages such as light weight, high strength, fire resistance, moisture resistance, corrosion resistance, and fast installation speed, it is widely used in residential buildings, commercial buildings, public facilities, and prefabricated building fields.
The dual-outlet light steel keel machine achieves integrated continuous production from steel coils to finished keels through processes such as hydraulic uncoiling, automatic feeding, leveling and straightening, punching, dual-channel roll forming, fixed-length cutting, and automatic material collection.
Compared to ordinary single-channel light steel keel equipment, the double-output light steel keel machine, through optimized equipment structure, achieves simultaneous output of two products within the same floor space and with the same number of operators, effectively improving production efficiency, reducing labor costs, and increasing the return on investment.
The equipment adopts precision multi-pass cold bending forming technology, and through a rationally designed double-roller system, it ensures that the material is formed stably and simultaneously. An advanced synchronous control system guarantees consistent speed, precise dimensions, and stable product quality in both production channels.

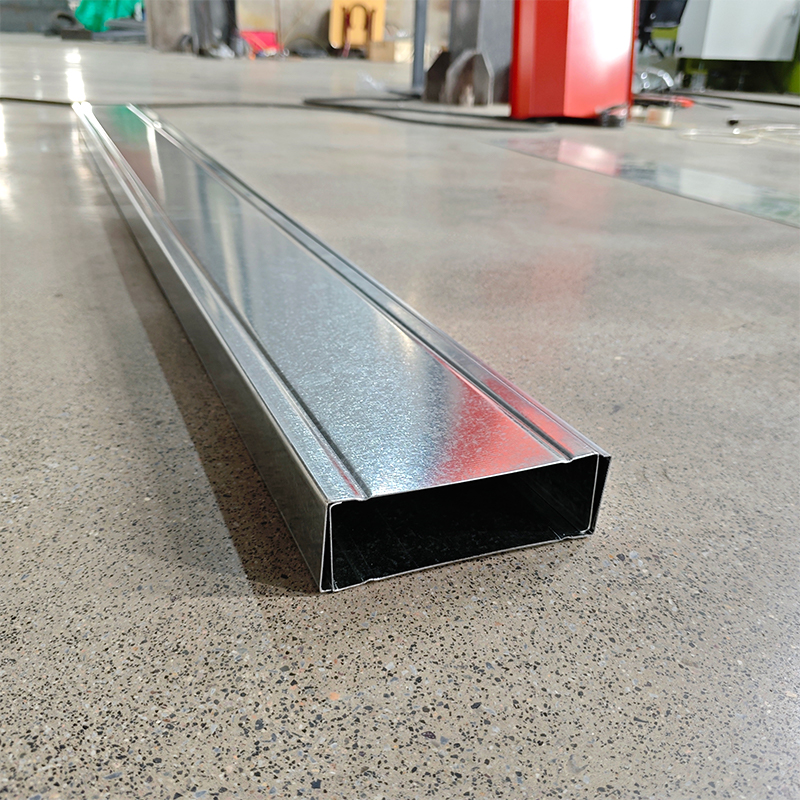

The double-output light steel keel machine is suitable for processing galvanized steel strips with a thickness of 0.35-1.5mm, and can produce C-shaped keels, U-shaped keels, ceiling keels, and other light steel profiles for construction. It is particularly suitable for keel manufacturers with large order volumes and high requirements for production continuity.
Core Advantages and Selling Points
Dual-channel synchronous production, doubling capacity
The biggest advantage of the dual-output light steel keel machine is its dual-station output structure, allowing one machine to produce two light steel keel products simultaneously.
Compared to traditional single-output equipment:
Significantly improved production efficiency
Reduced equipment investment
Lower factory floor space
Reduced labor requirements
Increased output per unit time
Especially suitable for large-scale production in large building materials enterprises.
Independent forming system design, ensuring stable product quality
The equipment adopts a dual-group independent forming structure, with each forming system precisely designed.
Synchronous control between the two channels ensures:
Consistent speed of the two production lines
Uniform product dimensions
Balanced forming pressure
Stable operation
Avoiding product deviations during high-speed production.
Multi-pass precision cold bending forming, ensuring profile accuracy
The equipment uses a progressive multi-pass roll forming process, rationally allocating deformation according to the cross-sectional characteristics of the light steel keel.
The forming process includes:
Material introduction
Edge bending
Rib formation
Section closure
Final correction
Multi-pass forming effectively reduces internal material stress, improving product straightness and cross-sectional accuracy.
High-performance roll system suitable for continuous production
The double-output light steel keel machine adopts high-precision roll manufacturing technology. The rolls undergo heat treatment to improve wear resistance and service life.
Roll advantages:
High forming accuracy
Strong wear resistance
Stable long-term operation
Reduced maintenance frequency
Ensuring quality for mass production.
Dual-station synchronous cutting improves production efficiency
The equipment is equipped with an automatic length-cutting system, completing dual-channel synchronous cutting according to the customer's set length.
Cutting system features:
Precise length control
Smooth cut
No manual secondary processing required
Convenient subsequent packaging and transportation
Improved overall production efficiency.
Optional online punching system to increase product added value
Online punching function can be added to the equipment according to customer product requirements.
Capable of:
Mounting hole machining
Connecting hole machining
Positioning hole machining
Special structure stamping
Online punching reduces subsequent processing steps and improves product standardization.
Intelligent control system for automated production

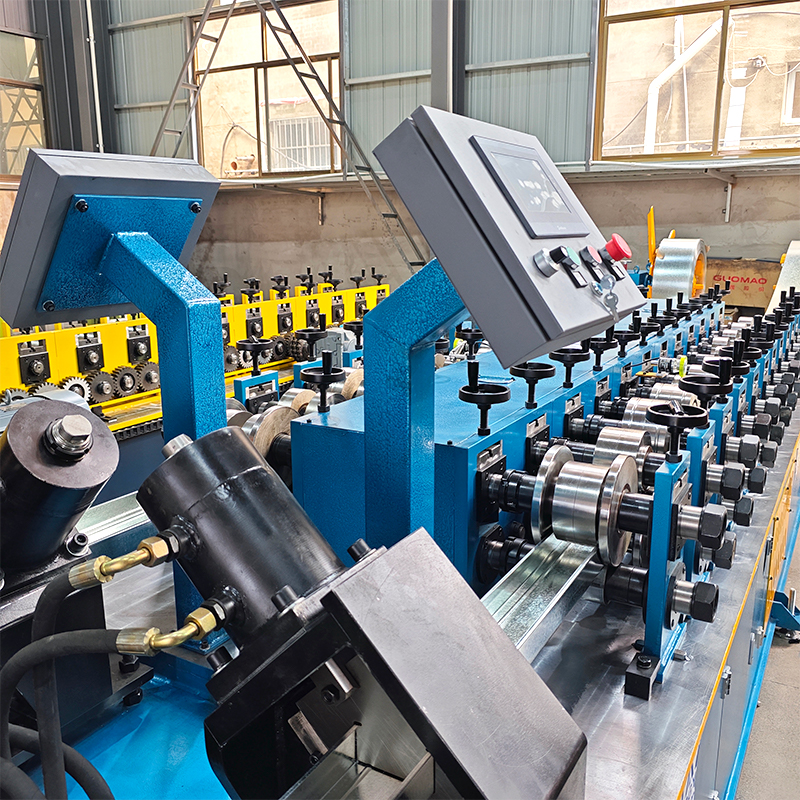

The equipment adopts a PLC automatic control system with a touch screen interface for digital management of the production process.
Operators can control in real time:
Production speed
Cutting length
Equipment status
Operating parameters
Fault alarms
Intelligent control reduces manual operation difficulty and improves production stability.
High efficiency and low labor costs enhance enterprise competitiveness
A double-output light steel keel machine requires only 1-2 operators to operate both production channels under normal conditions.
Compared to traditional production methods:
Reduced labor input
Increased unit output
Reduced energy consumption
Increased enterprise profit margin
Suitable for long-term production by large keel manufacturing enterprises.
Production Process
Hydraulic Uncoiling → Guided Feeding → Leveling and Correction → Online Punching → Dual-Channel Roll Forming → Synchronous Length Cutting → Automatic Receiving

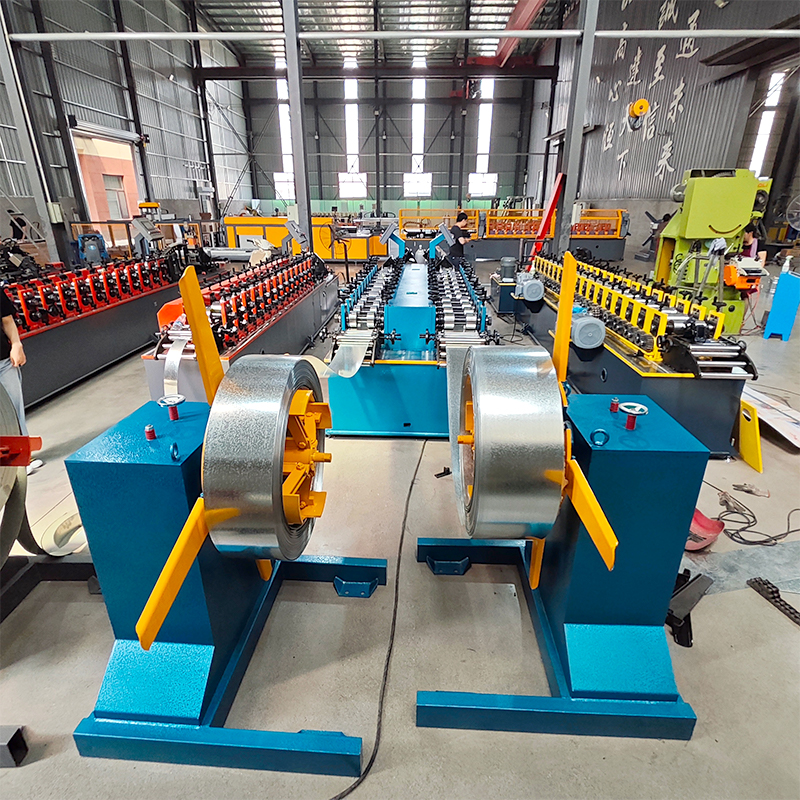

Hydraulic Uncoiling: The hydraulic uncoiler stably supports the steel coil, achieving continuous automatic feeding.
Guided Feeding: Precisely controls the direction of the steel strip, ensuring the material enters the dual forming system synchronously.
Leveling and Correction: Eliminates internal stress in the steel strip, improving material flatness.
Online Punching: Completes installation structure processing according to customer requirements.

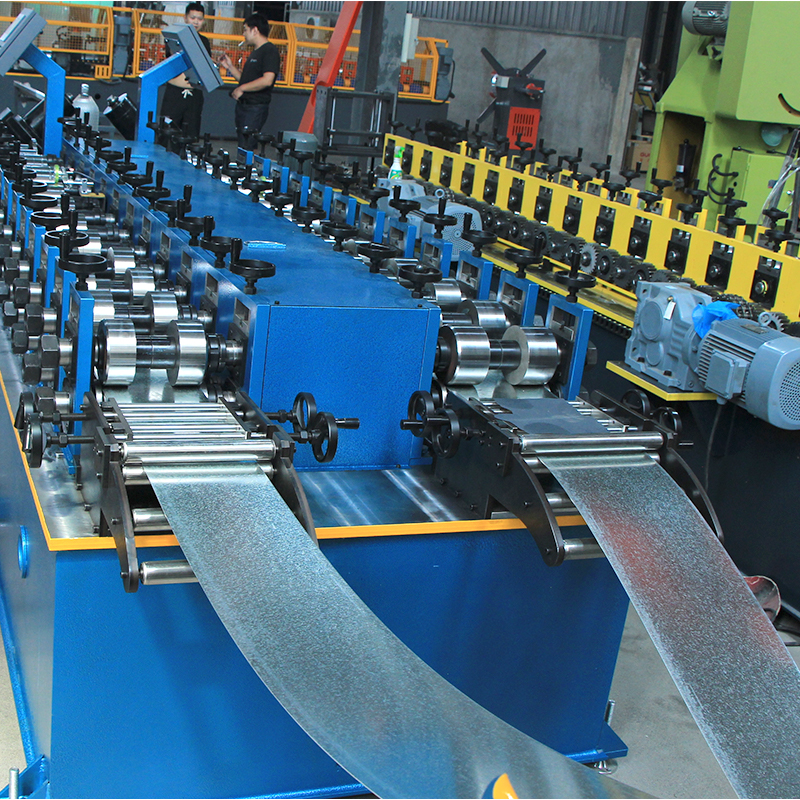

Dual-Channel Roll Forming: Two sets of roll systems simultaneously complete the forming of the light steel keel section, improving production efficiency.

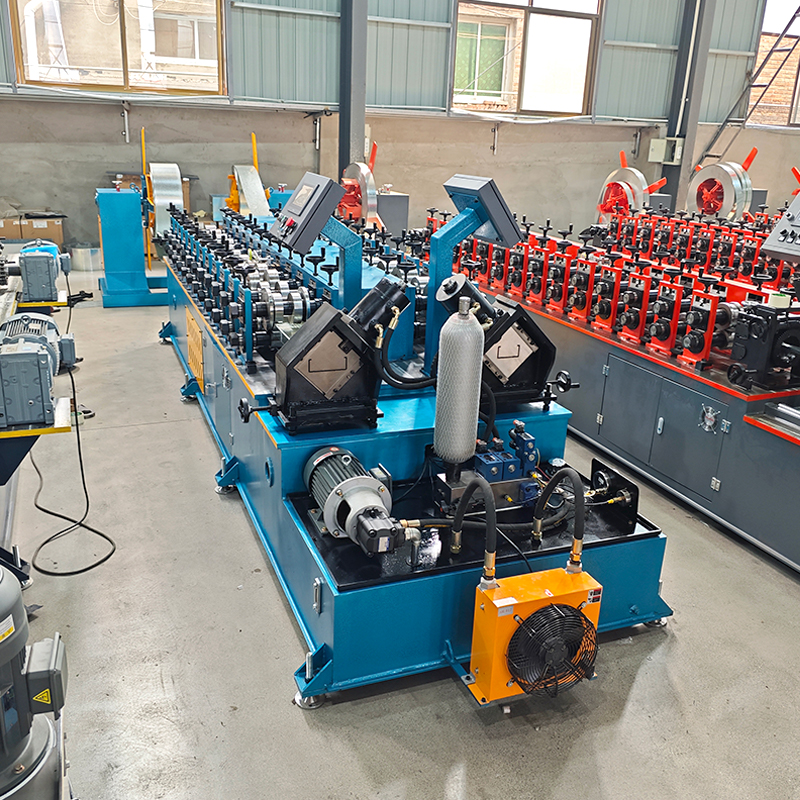

Synchronous Length Cutting: The dual channels simultaneously complete precise cutting, ensuring consistent product length.
Automatic Receiving: Finished products are automatically arranged, improving packaging and transportation efficiency.
Application Areas
Double-outlet light steel keel machines produce products widely used in:
Residential Buildings: Used for residential partitions, ceilings, and interior decoration systems.
Commercial Buildings: Used in large-scale decoration projects such as shopping malls, hotels, and office buildings.
Prefabricated Buildings: Used as an important supporting material for industrialized construction.
Public Buildings: Used in large-scale buildings such as hospitals, schools, and airports.
Building Material Factories: Used for mass production and export supply of light steel keels.
Large-scale Decoration Projects: Meets the demand for large-volume, high-efficiency building materials.
Market Prospects
As the global construction industry moves towards industrialization and standardization, the market demand for light steel keel continues to expand.
Shorter construction cycles, rising labor costs, and the promotion of green building concepts have made light steel keel an important material for modern building decoration.
For large-scale keel manufacturers, improving production efficiency and reducing unit costs have become crucial factors in market competition. Double-output light steel keel machines, through dual-channel synchronous production technology, can significantly increase enterprise capacity and reduce the number of equipment investments, representing an important direction for the future automation upgrade of the light steel keel manufacturing industry.
The increasing demand for light steel building systems in markets such as Europe, America, the Middle East, and Southeast Asia is further driving the development of high-efficiency keel production equipment.
Service Support
Solution Design: We provide professional production line planning solutions based on customer product type, production capacity requirements, and factory conditions.
Equipment Customization: We support customization of different keel specifications, cross-sections, and special building profiles.
Installation and Commissioning: We provide global installation and commissioning services by professional engineers and train operators.
Technical Support: We provide long-term equipment maintenance, process optimization, and spare parts supply.
Capacity Upgrade: We provide automation upgrades and production line transformation services according to customer production needs.
Why Choose Us
Nearly 20 years of experience in cold bending equipment manufacturing; mature technology and perfected manufacturing processes.
Professional R&D capabilities for light steel keel equipment, covering a variety of building keel products.
Dual-output high-efficiency production technology significantly increases equipment capacity.
High-precision roll manufacturing ensures stable product dimensions.
Intelligent PLC control enables automated continuous production.
Supports the customized needs of global customers, providing complete solutions.
Original factory production offers a more advantageous equipment investment cost.
Comprehensive overseas service system provides installation, commissioning, and long-term technical support.
