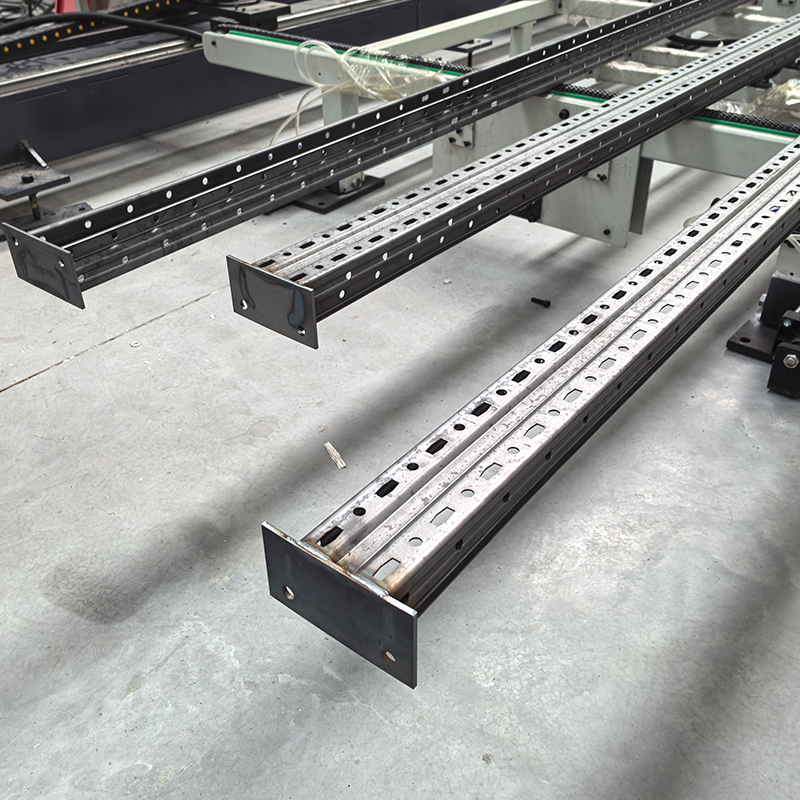

Rack Upright Automatic Welding Machine

I. Equipment Overview

The Rack Upright Automatic Welding Machine is a complete production line system designed specifically for the automated welding of core warehouse rack components, such as uprights and beams. Welding is a critical step in rack manufacturing; the quality of welds—such as those joining uprights to base plates or beams to connectors—directly determines the rack's overall load-bearing safety and service life.

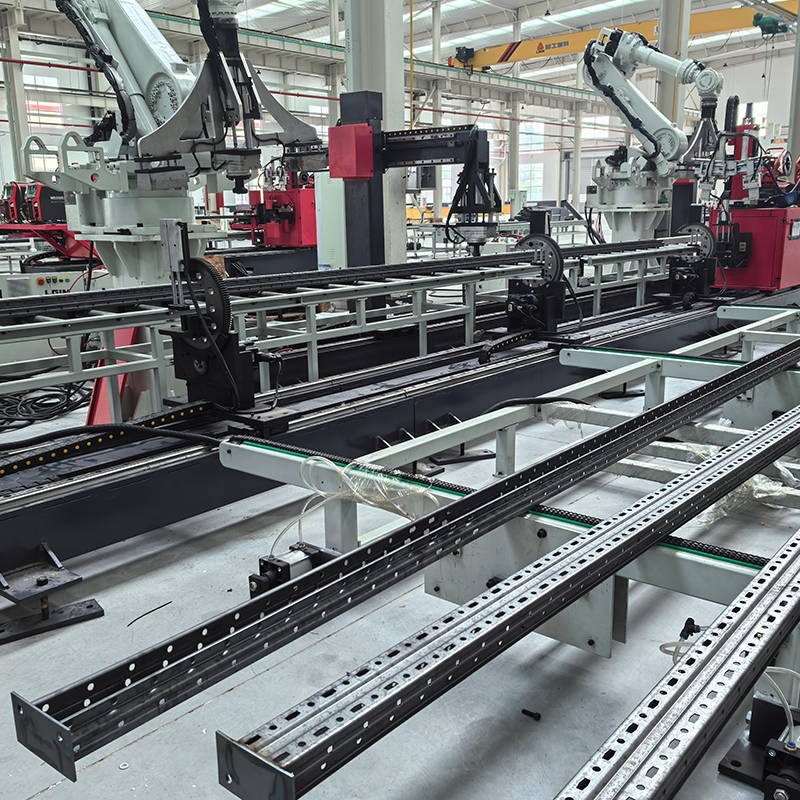

This welding line comprises several units: two sets of cantilever-style automatic palletizers (including 7-meter mobile platforms), a specialized automatic turnover welding unit (featuring mobile/telescopic capabilities and equipped with two Megmeet 350DR welding machines), a fully automated line control system, a finished upright stacking rack, and an 18-meter upright conveyor line. The entire line operates in a fully automated, continuous mode. From upright loading, positioning, and clamping, and automatic welding—including double-sided welding via component turnover—to the final stacking of finished products, the entire process is automated, truly realizing the concept of an "unmanned welding workshop."
The equipment is suitable for the automatic welding of various rack components, including four-post uprights, T-shaped uprights, and frame structures. The line utilizes a simultaneous symmetrical welding process, resulting in minimal welding deformation, high precision, and aesthetically pleasing weld seams. Built for durability, the equipment effectively boosts production efficiency and reduces labor costs.

II. Equipment Components and Functions

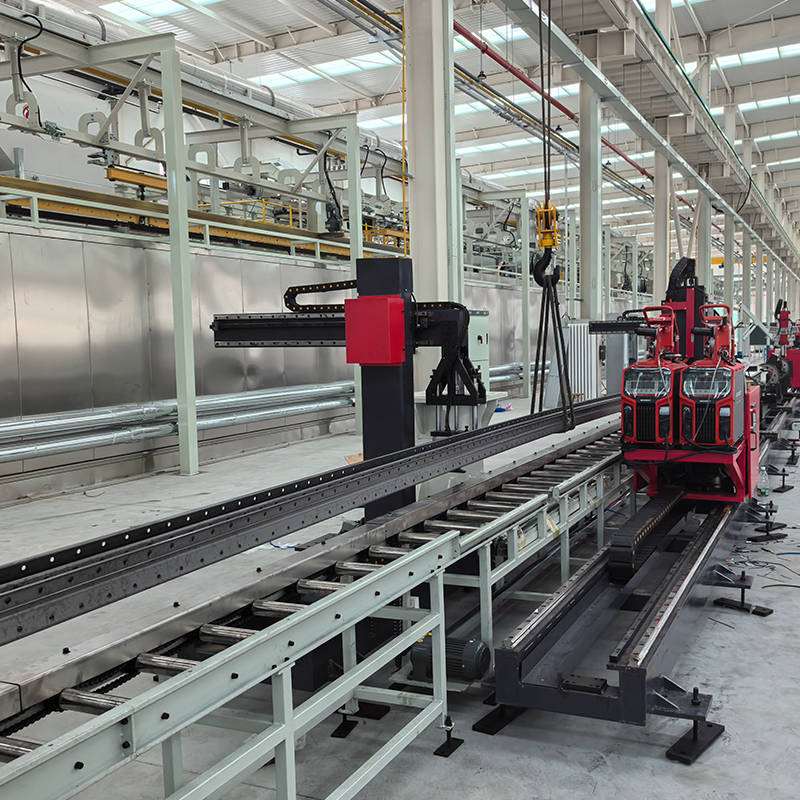

(1) Two Sets of Cantilever-Type Automatic Palletizers (Including a 7-Meter Mobile Platform)
The cantilever-type automatic palletizers serve as the automatic loading unit at the front end and the automatic unloading unit at the rear end of the welding line. Positioned at both ends of the line, they work in conjunction with a 7-meter mobile platform to facilitate the automatic transport and positioning of column components.
Front-end palletizing: Automatically picks up columns awaiting welding and transports them to the welding station, ensuring precise loading.
Rear-end palletizing: Automatically stacks finished columns and discharges them in an orderly manner.
Features high palletizing speeds and minimal spatial constraints, effectively reducing labor costs.
Ensures neat stacking of materials; simple to operate and maintain.
Capable of continuous, long-term operation with a compact footprint, high stability, and a low failure rate.
The 7-meter mobile platform enables long-distance automatic material transfer, meeting the continuous operation requirements of the 18-meter production line.

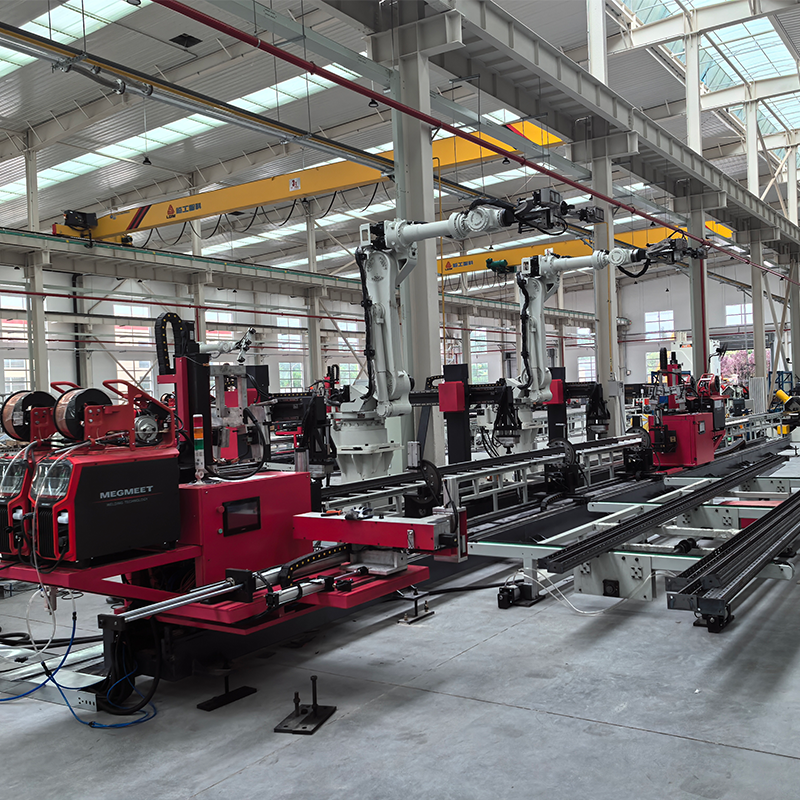

(2) Specialized Automatic Turnover Welding Machine (Mobile/Telescopic Design; Equipped with Two Megmeet 350DR Welders)
This specialized automatic turnover welding machine is the core equipment of the entire welding line. It utilizes a turnover welding process that is particularly well-suited for welding long structural components. Featuring a mobile and telescopic design, the machine allows for flexible adjustment of the welding position based on column length, accommodating the welding needs of products with various specifications. It is equipped with two Megmeet 350DR welding units to enable synchronous dual-torch welding. Flip-Welding Process: Performs double-sided welding (front and back) of the column in a single pass, eliminating the need for manual flipping.
Utilizes simultaneous symmetrical welding, resulting in minimal product deformation and high welding precision.
Produces aesthetically pleasing weld seams with stable, reliable quality.
The drive system employs high-precision actuation to ensure accurate positioning of weld seams and seamless transition between workstations.
Compatible with specialized positioning and clamping tooling, enabling flexible clamping for various product specifications and types.
Megmeet 350DR Welder: Features all-digital inverter technology for stable, energy-efficient welding; includes a 54V contact-based positioning function that easily penetrates surface rust and oil for precise location detection; supports multiple welding modes and integrates seamlessly with other equipment.

(3) Fully Automated Production Line System
The fully automated production line system serves as the "brain" of the entire welding line, coordinating and controlling the synchronized operation of all unit equipment. A central PLC control system automates the entire process, from loading and welding to flipping and unloading.
Fully automated continuous operation mode enables "unmanned welding."
Drive mechanisms are controlled via a CNC display screen, ensuring intuitive and convenient operation.
Features a simple, compact structure, a wide range of motion, and a high level of automation.
Resolves issues associated with manual welding, such as unsightly weld seams and significant workpiece deformation.
Welding parameters can be quickly adjusted for different product specifications, enabling flexible production.

(4) Finished Column Stacking Rack
The finished column stacking rack is the final collection unit of the welding line, designed for the automatic stacking and neat arrangement of finished columns after welding.
Automatically receives finished columns from the welding process.
Stacks and arranges columns neatly and orderly according to preset programs.
Reduces manual handling and lowers labor intensity.
Works in coordination with the downstream palletizer to facilitate the automatic discharge of finished products.

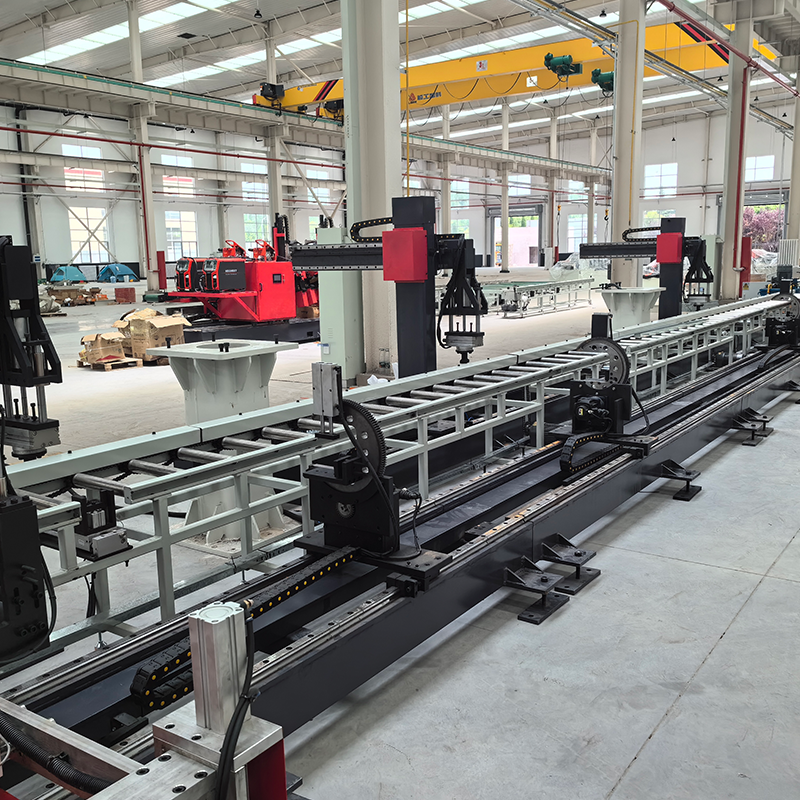

(5) Column Assembly Line (18 Meters)
The 18-meter column assembly line serves as the material transport channel connecting various workstations, enabling the fully automated flow of columns through the entire process—from initial loading and welding to the unloading of finished products. 18-meter-long conveyor line designed for the continuous transport of columns of various lengths
Seamlessly integrates with upstream and downstream palletizers and specialized turnover-welding machines
Ensures smooth transport and precise positioning, guaranteeing the timely arrival of materials at the welding station
Delivers a smooth, high-efficiency workflow that significantly reduces the production cycle time

III. Core Advantages

(1) Fully automated continuous operation, significantly boosting production efficiency
The entire line operates automatically from upright loading, positioning and clamping, and automatic welding (including double-sided welding via turnover) to finished product palletizing. Production efficiency is increased several-fold compared to traditional manual or semi-automatic welding. A simultaneous symmetrical welding process drastically reduces welding time, while the use of dual welding torches further shortens the welding cycle.

(2) High welding precision ensuring rack safety
The symmetrical welding process minimizes product deformation and ensures high welding precision. High-precision drive mechanisms combined with specialized positioning and clamping tooling ensure accurate weld seam placement. The resulting welds are aesthetically pleasing and of consistent, reliable quality. Welding quality directly determines the rack's overall load-bearing safety and service life; high-precision welding ensures robust, reliable connections at critical points such as upright-to-footplate and beam-to-connector interfaces.

(3) Significant labor savings and reduced overall costs
Traditional rack welding relies on a large workforce, resulting in low efficiency and inconsistent quality. This fully automated line requires only 1–2 operators for monitoring, reducing labor costs by over 70% compared to traditional multi-station, multi-operator setups. It also minimizes welding defects and rework caused by manual operation, further lowering total production costs.

(4) Flexible production and multi-purpose capability
By simply changing positioning/clamping tooling and adjusting welding parameters, a single machine can handle the welding needs for various rack upright and beam specifications. It is capable of welding diverse components, including four-post uprights, T-shaped uprights, and frame structures, making it ideal for rapid production switching across multiple product types and specifications.

(5) Intelligent control and ease of operation
The fully automated system utilizes PLC central control and a digital display to coordinate the entire line's operation. Parameter settings are intuitive, allowing for specification changes with the touch of a button. Automatic fault diagnosis and alarm functions facilitate quick troubleshooting and maintenance, significantly lowering the skill requirements for operators. 6. Robust, durable, stable, and reliable
The system features a compact structural design, an extensive operating range, and a long service life.
The Megmeet 350DR welding machine utilizes all-digital inverter technology, redefining the standards for reliability and stability in inverter welders.
It supports continuous, long-term operation with high stability and a low failure rate.
Key components are manufactured using high-quality materials and precision machining processes, ensuring stable performance under heavy loads over the long term.

IV. Technical Parameters

Item Parameter
Applicable Workpieces: Rack uprights, T-shaped uprights, frame structures, etc.
Welding Method: Simultaneous symmetrical welding / Double-sided welding with turnover
Welding Machine Configuration: Megmeet 350DR welding machines × 2 units
Palletizer: Cantilever-type automatic palletizers × 2 sets
Mobile Platform: 7 meters
Assembly Line Length: 18 meters
Control System: Fully automatic PLC control / CNC display screen
Operators: 1–2 persons

V. Production Process

Column loading (cantilever-style palletizer) → Automatic transport (7-meter mobile platform) → Positioning and clamping → Automatic front-side welding (Megmeet 350DR) → Automatic flipping → Automatic back-side welding → Automatic unloading (cantilever-style palletizer) → Finished product stacking (column stacking rack)

VI. Application Areas

Automated rack welding lines are widely used in the following scenarios:

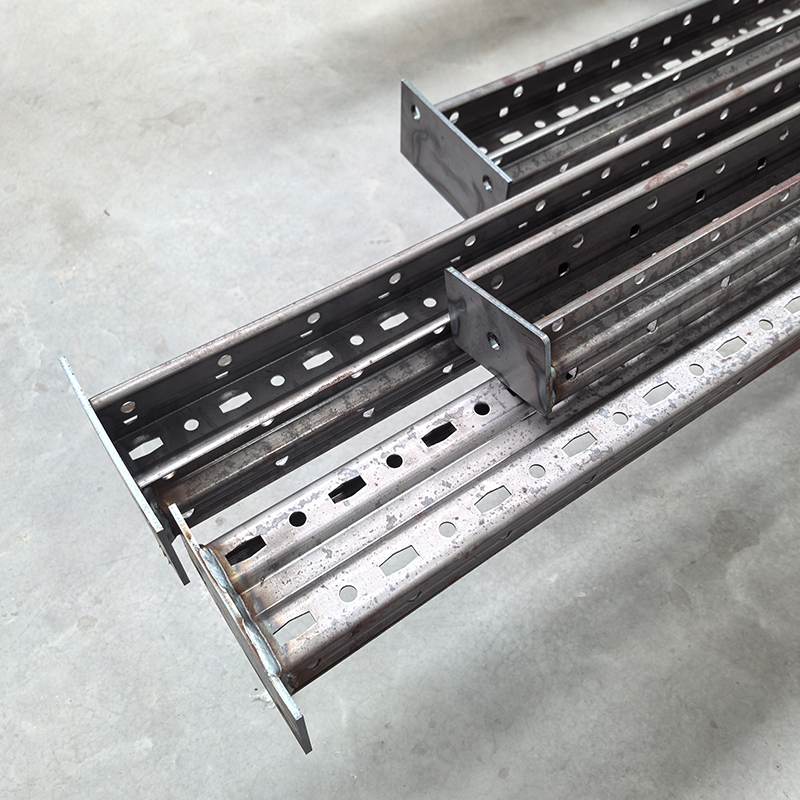

Beam-type racks (pallet racks): Welding of uprights to base plates and beams to connectors—welding quality directly determines load-bearing safety and service life.
Drive-in racks: Upright welding precision ensures the overall stability of the rack structure.
Mezzanine racks: Welding of uprights to connecting components—multi-level structures demand high welding strength.
E-commerce logistics centers: Standardized, high-volume welding production of rack uprights ensures rapid delivery and long-term safe operation.
Heavy-duty storage racks: High-load racks require exceptional welding strength—automated welding ensures that the quality of every weld is controllable and traceable.
Intelligent automated warehouses: Automated storage systems impose strict precision requirements on rack components—high-precision welding ensures accurate interfacing with stacker cranes and AGVs.

VII. Service Support

Solution Design: Customized welding line design and layout planning based on customer product drawings, production capacity requirements, and factory conditions.
Custom Manufacturing: Support for non-standard customization, with full control over the entire process—from fixture design to integrated line manufacturing.
Installation & Commissioning: On-site installation, commissioning, and operator training provided by engineers to ensure rapid production startup.
After-Sales Support: Long-term technical consultation and spare parts supply; engineers hold all necessary visas and are available for on-site service worldwide at any time.
Continuous Optimization: Equipment modification and capacity upgrade services available to adapt to changing production needs.

VIII. Why Choose Us

Nearly 20 Years of Manufacturing Experience: Mature technology, refined processes, and reliable quality
Full-Line Integration Capabilities: Covers the entire workflow—including palletizing, welding, flipping, conveying, and stacking—for a one-stop delivery solution
High-Precision Welding: Single-pass symmetrical welding process ensures minimal deformation, high precision, and aesthetically pleasing weld seams
Direct Manufacturer: No middlemen, offering excellent value for money
Global Service Network: Engineers hold all necessary visas, ensuring rapid response
