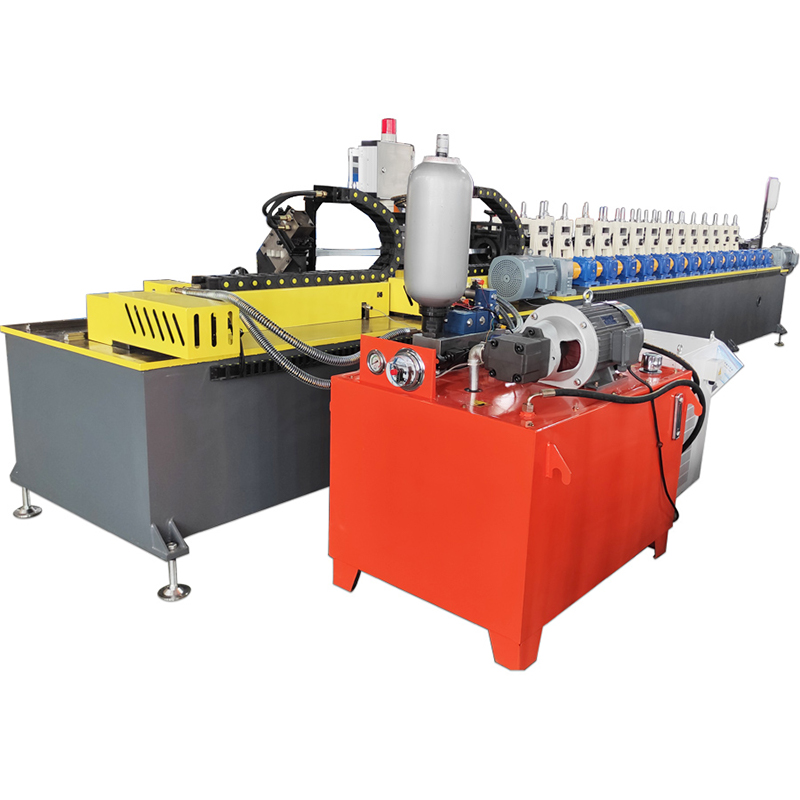

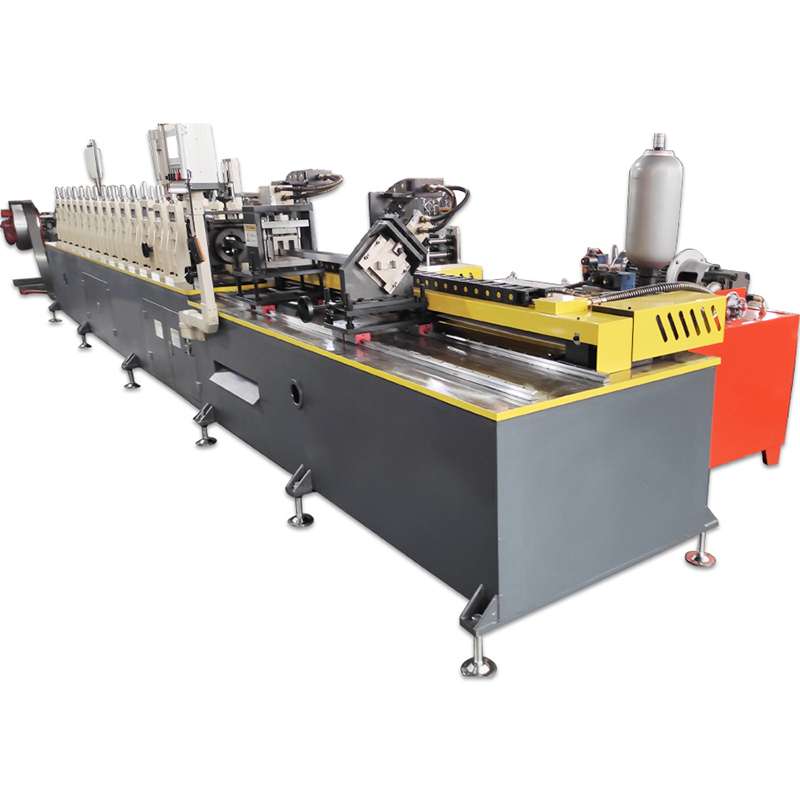

CU-type light steel keel Roll Forming Machine
CU-type light steel keel Roll Forming Machine
CU-type light steel keel Roll Forming Machine
CU-type light steel keel Roll Forming Machine
CU-type light steel keel Roll Forming Machine

CU-type light steel keel Roll Forming Machine

The CU-type light steel keel roll-forming machine is professional cold-bending forming equipment for producing C-type vertical keels and U-type vertical keels. The equipment continuously forms galvanized steel strips using multiple sets of precision rollers and can be configured with automatic punching, cutting, and material collection systems as needed. The produced CU-type keels are lightweight, high-strength, and easy to install, and are mainly used in building partitions, interior decoration, ceiling supports, and light steel structure decorative systems.

CU-type light steel keel roll forming machine – a professional manufacturer and expert in light steel structure forming, offering efficient, stable, and intelligent production.

PREV: No previous product
NEXT: CU Opening and Closing Light Steel Keel Roll Forming Machine

Equipment Introduction

Parameter

Flowchart

Process Flow

Contact

Equipment Overview

The CU-type light steel keel roll forming machine is a professional cold-bending forming production line specifically designed for producing C-shaped and U-shaped keels for building decoration systems, partition systems, and ceiling systems. Light steel keel is a thin-walled steel structural profile made primarily from continuous hot-dip galvanized steel strip through a cold-bending roll forming process. It features lightweight, high strength, good fire resistance, moisture and corrosion resistance, and convenient construction, making it a crucial basic material in modern prefabricated building decoration systems.
As the global construction industry moves towards lightweighting, industrialization, and greening, light steel keel is gradually replacing traditional wooden keels and some concrete structural auxiliary materials, and is widely used in residential buildings, commercial buildings, office buildings, hotels, hospitals, industrial plants, and prefabricated building internal structural systems.
The CU-type light steel keel machine processes galvanized steel coils into standardized C-shaped and U-shaped light steel keel products through continuous processes including hydraulic uncoiling, guided feeding, leveling and straightening, punching, roll forming, fixed-length cutting, and automatic material collection. The entire production line utilizes a PLC automatic control system, achieving fully automated continuous production from raw material input to finished product output, significantly improving production efficiency and reducing labor costs.
The equipment employs multi-pass progressive cold bending forming technology. Through precisely designed forming rollers, the steel strip progressively completes bending, reinforcing rib forming, edge shaping, and final cross-section correction at multiple stations. Compared to traditional stamping and bending methods, cold bending forming offers advantages such as high material utilization, fast production speed, good dimensional consistency, and low production costs.
The CU-type light steel keel machine can produce C-type vertical keels, U-type top and bottom keels, and matching building structural profiles of different specifications according to customer needs. It is suitable for processing galvanized steel strips with a thickness of 0.35-1.5mm. The equipment features flexible configuration changes, stable operation, and a high degree of automation, making it an important piece of equipment for light steel keel manufacturers to achieve large-scale production.

Core Advantages and Selling Points

C/U Dual-Structure Production: One Machine Meets Multiple Light Steel Keel Needs
The CU-type light steel keel machine adopts a flexible forming design. By adjusting the position of the forming rollers and some structural parameters, it can quickly switch between C-type and U-type keel products.
Traditional light steel keel production usually requires different equipment for different products. The CU-type equipment, through modular design, improves equipment utilization and reduces customer equipment investment costs.
One production line can cover:
C-type vertical keel
U-type ceiling and ceiling keel
Partition wall system keel
Ceiling system keel
Architectural decorative auxiliary profiles
Meeting the diverse, small-batch, and large-scale order production needs of building material companies.
Multi-pass precision cold bending forming ensures product dimensional stability
The equipment adopts a multi-pass progressive roll forming process. The deformation amount of each pass is rationally allocated according to the cross-sectional characteristics of the light steel keel, ensuring uniform stress on the material and avoiding problems such as cracking, deformation, and springback that occur in traditional processing.
Multi-pass forming offers the following advantages:
Precise profile cross-sectional dimensions
High product straightness
Complete edge forming
Stable surface quality
Good installation and matching performance
It can meet the requirements for keel strength and dimensional accuracy during building construction.
High-rigidity frame structure ensures long-term stable operation
The forming machine adopts a high-strength frame structure design, and key components are precision-machined to improve the overall rigidity of the equipment.
The high-rigidity structure effectively reduces equipment vibration during high-speed operation, ensuring precise matching between the rollers and maintaining stable performance during long-term continuous production.
Equipment features:
Stable structure, not easily deformed
Uniform forming pressure distribution
Long equipment service life
Low maintenance cost
Suitable for long-term continuous production in light steel keel factories.
Online punching system improves product installation efficiency
The CU-type light steel keel machine can be configured with an online punching device according to customer product requirements to automatically process keel mounting holes, connecting holes, and positioning holes.
Online punching compared to traditional post-processing methods:
Reduces manual operation
Improves hole position accuracy
Simplifies production process
Increases product added value
Especially suitable for applications requiring high installation efficiency, such as building partition systems and ceiling systems.
High-performance roll system ensures profile quality
The equipment rolls are made of high-quality mold steel and undergo heat treatment to improve wear resistance and service life.
Precision roll design effectively controls stress changes during material forming, avoiding damage to the galvanized layer and ensuring a smooth and aesthetically pleasing surface for the light steel keel.
Roll advantages:
High wear resistance
Stable dimensions
High forming accuracy
Long maintenance cycle
Suitable for large-scale continuous production.
Automated control system reduces labor costs
The entire line uses a PLC automatic control system equipped with a touch screen human-machine interface for digital management of production parameters.
Operators can control the following via the touchscreen:
Production speed setting
Product length setting
Equipment start/stop control
Operating status monitoring
Fault alarm query
The entire production line requires only 1-2 operators during normal operation, significantly reducing labor costs and improving production management efficiency.
High-efficiency continuous production meets the needs of large-scale manufacturing.
The CU-type light steel keel machine adopts a continuous roller pressing production method, eliminating the need for frequent shutdowns for adjustments, resulting in higher production efficiency compared to traditional processing methods.
The equipment can achieve:
Continuous production
Stable material supply
Rapid cutting
Automatic material collection
Reduced material waste
Improved order fulfillment capability
Suitable for large building material manufacturers, light steel keel manufacturers, and building material suppliers.


Production Process

Hydraulic Uncoiling → Guided Feeding → Leveling and Correction → Online Punching → Roll Forming → Cutting to Length → Automatic Receiving
Hydraulic Uncoiling: The hydraulic uncoiler carries the steel coil, fixing the material through hydraulic tension to achieve continuous and stable feeding.
Guided Feeding: A precision guiding mechanism controls the direction of the steel strip's entry, preventing material deviation and improving subsequent forming accuracy.

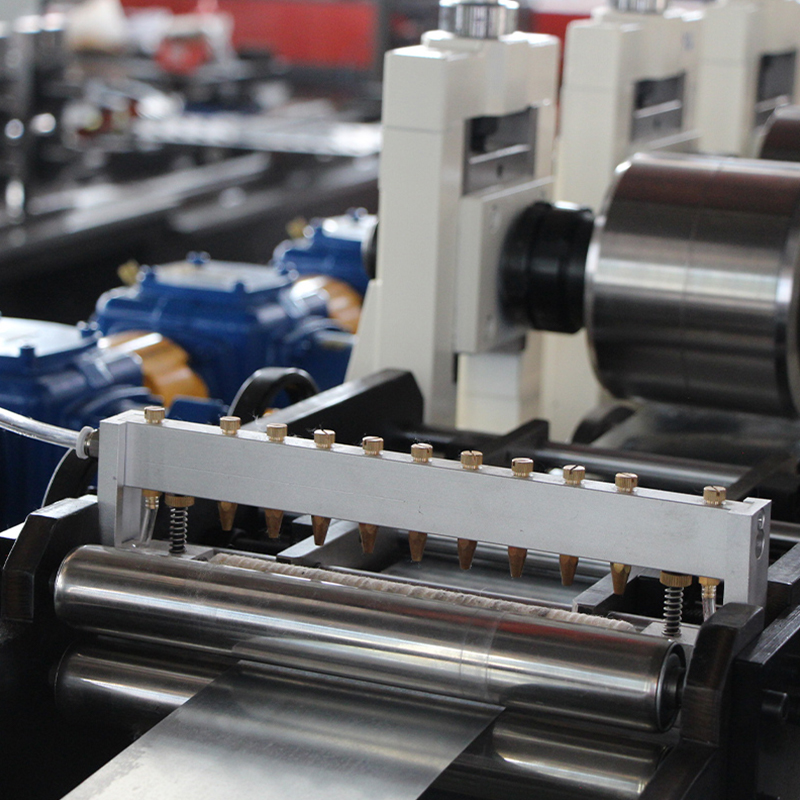

Leveling and Correction: A leveling mechanism eliminates internal stress generated during steel coil transportation and storage, keeping the material flat.
Online Punching: Automatically punches holes in the keel according to customer building installation requirements, improving product construction convenience.

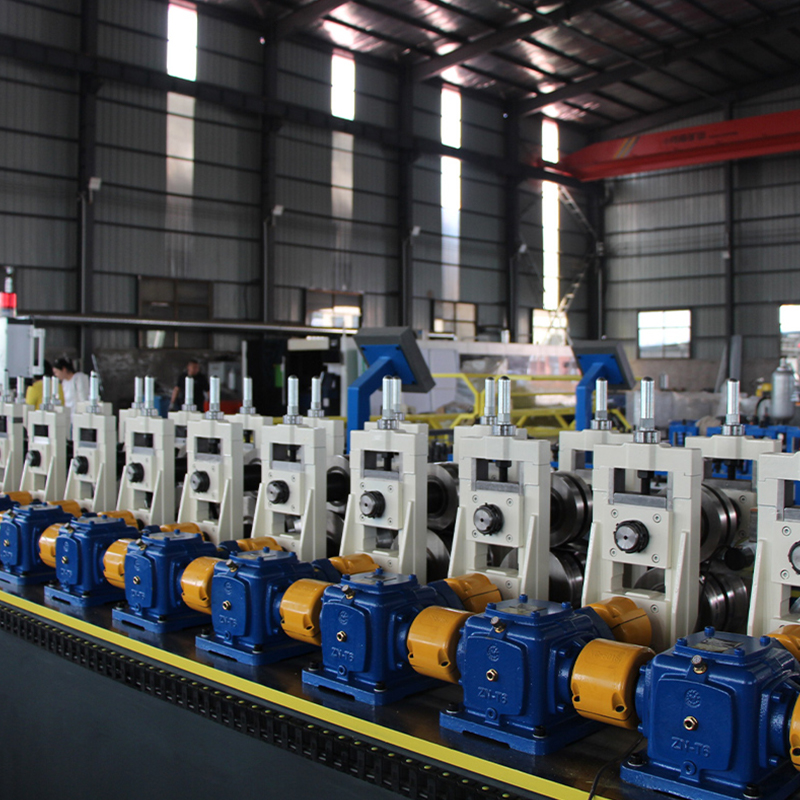

Roll Forming: Multiple sets of precision rollers gradually change the material cross-section, ultimately forming the steel strip into a standard C-shaped or U-shaped keel.
Cutting to Length: Automatically cuts to the customer's set length, ensuring uniform product length and improving packaging and transportation efficiency.
Automatic Receiving: Finished products are automatically arranged and collected for convenient subsequent packaging, transportation, and use.

Application Areas

The light steel keel products produced by the CU-type light steel keel machine are widely used in the following fields:
Building Partition Wall Systems: Used in the interior partition wall structures of residential, office, and commercial buildings, serving as a supporting framework for the walls and improving construction efficiency.
Ceiling Decoration Systems: Used in the ceiling structures of hotels, shopping malls, office buildings, etc., providing stable load-bearing support.
Prefabricated Buildings: As an important component of prefabricated buildings, light steel keels enable rapid construction and modular installation.
Industrial Buildings: Used for interior space partitioning and decoration projects in industrial plants, warehouses, and production workshops.
Green Building Projects: Light steel keels have advantages such as light weight, environmental friendliness, and recyclability, aligning with the modern development direction of green buildings. Services.

Market Prospects

With the rapid development of global industrialized construction and prefabricated buildings, the market demand for light steel keel continues to grow.
Compared to traditional building materials, light steel keel features faster construction speed, lighter weight, better seismic performance, and superior fire resistance, leading to its increasing application in residential construction, commercial decoration, and public buildings.
The European and American markets have long used light steel keel as an internal structural material for buildings. In the Middle East, the rapid development of commercial buildings and infrastructure construction has led to a continuous increase in demand for light steel keel and automated production equipment. Emerging markets in Southeast Asia and South America are also experiencing significant demand for building profiles due to urbanization.
In the future, with rising building energy efficiency standards and increasing labor costs, automated, high-efficiency, and high-precision light steel keel production equipment will gradually replace traditional manual processing methods, further expanding the market.


Service Support

Solution Design: We provide complete light steel keel production line design solutions based on customer product specifications, production capacity requirements, and factory conditions.
Equipment Customization: We support the customization of keel products with different cross-sections, thicknesses, and specifications, controlling the entire process from roll design to complete machine manufacturing.
Installation and Commissioning: We provide global installation and commissioning services by professional engineers and train customer operators to ensure rapid equipment deployment in production.
Technical Support: We provide long-term equipment maintenance guidance, production process optimization, and spare parts supply services.
Capacity Upgrade: We provide equipment upgrades, automation transformations, and production line optimization solutions based on changes in customer production needs.

Why Choose Us?

Nearly 20 years of experience in cold bending equipment manufacturing; mature technology, perfected production processes, and stable and reliable equipment.
Professional light steel keel production solutions, covering C-shaped, U-shaped, and various other building keel product needs.
High-precision manufacturing capabilities; using precision-machined rollers to ensure product dimensional stability.
Automated production advantages; PLC control system enables continuous, efficient, and intelligent production.
Flexible customization capabilities; quickly design dedicated equipment based on customer product drawings.
Direct supply from the source factory, reducing intermediate links and improving equipment cost-effectiveness.
Global service network; professional engineering team supports overseas installation, commissioning, and after-sales service.

Item Specification
Equipment Name CU Type Light Steel Keel Machine
Applicable Materials Hot-dip galvanized steel strip, cold-rolled steel strip
Material Thickness 0.35–1.5 mm
Material Width Customized according to product specifications
Forming Speed 20–60 m/min
Forming Method Multi-pass cold bending roll forming
Number of Forming Passes 12–20 passes
Transmission Method Chain drive or gearbox drive optional
Roll Material GCr15, Cr12MoV
Roll Treatment Quenching treatment, HRC 58–62
Control System PLC fully automatic control
Punching Method Hydraulic punching or servo punching optional
Cutting Method Hydraulic cutting or flying saw cutting
Operators 1–2 people with after-sales service
