I. Equipment Introduction

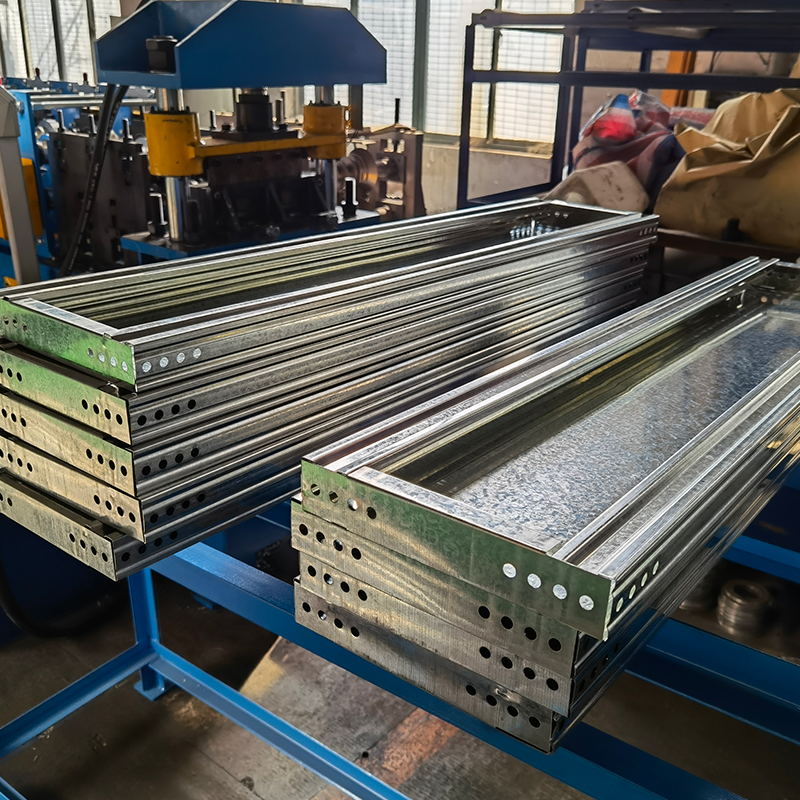

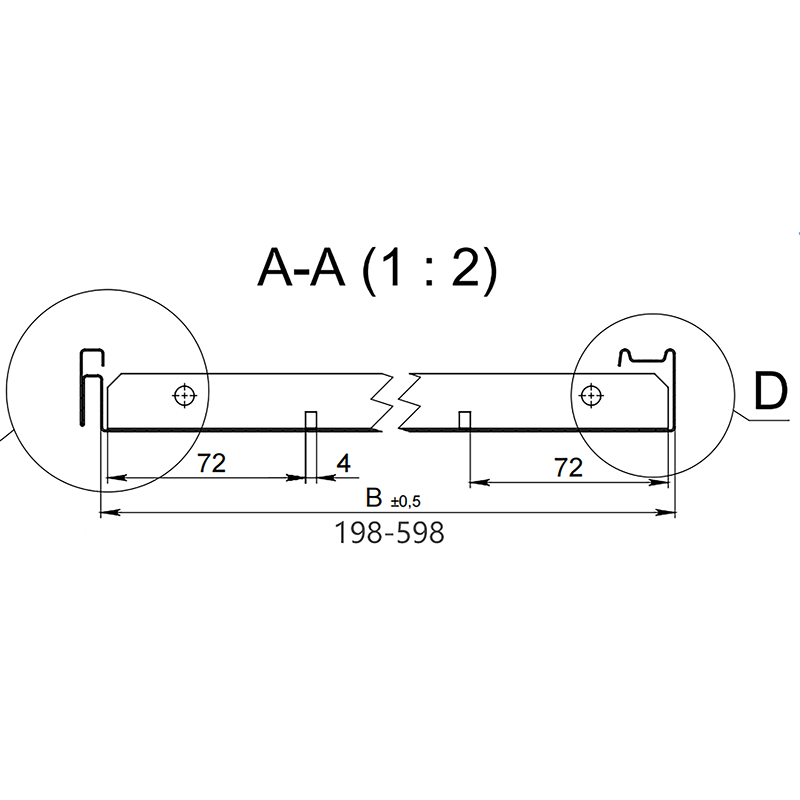

The shelf panel roll forming machine is specialized cold-roll forming equipment designed for the production of warehouse and supermarket shelf panels (horizontal shelves). As a primary component that directly bears the load of goods within a shelving system, the panel's flatness, load-bearing capacity, and dimensional accuracy are critical to the system's usability and safety.
Utilizing a continuous cold-roll forming process, the equipment transforms steel coil stock into finished shelf panels in a single, integrated workflow—encompassing uncoiling, leveling, feeding, punching, cold-roll forming, and cutting. By consolidating multiple processes—such as punching, shearing, forming, and hemming—into one line, it replaces the combination of traditional CNC punching, bending, and shearing machines, truly enabling a "one-person, one-machine" operation with "one-touch" production.

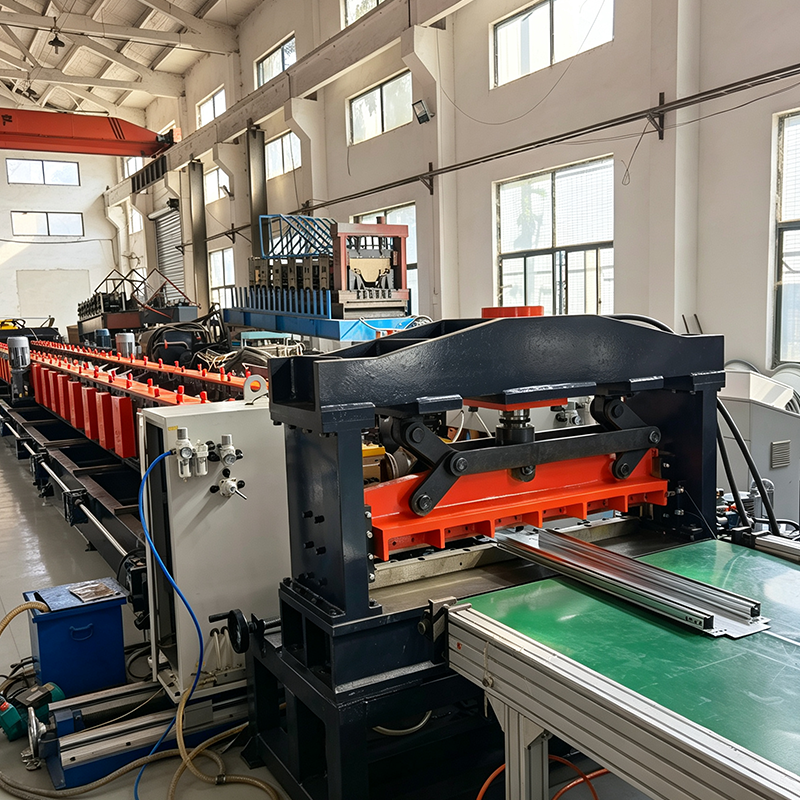

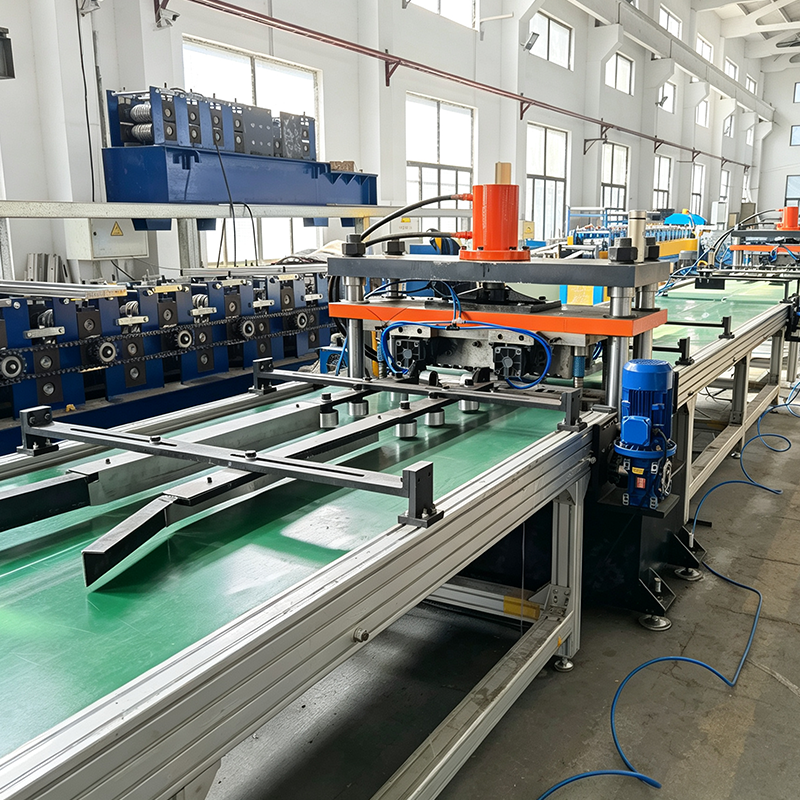

The equipment comprises several key components: an automatic uncoiler, a guide frame, leveling/feeding units, a continuous punching section, a forming section, a cut-to-length unit, a run-out table, and an electrical control cabinet. The entire line features fully automatic PLC control and a touchscreen HMI (Human-Machine Interface), ensuring a high degree of automation, ease of operation, and superior production efficiency.

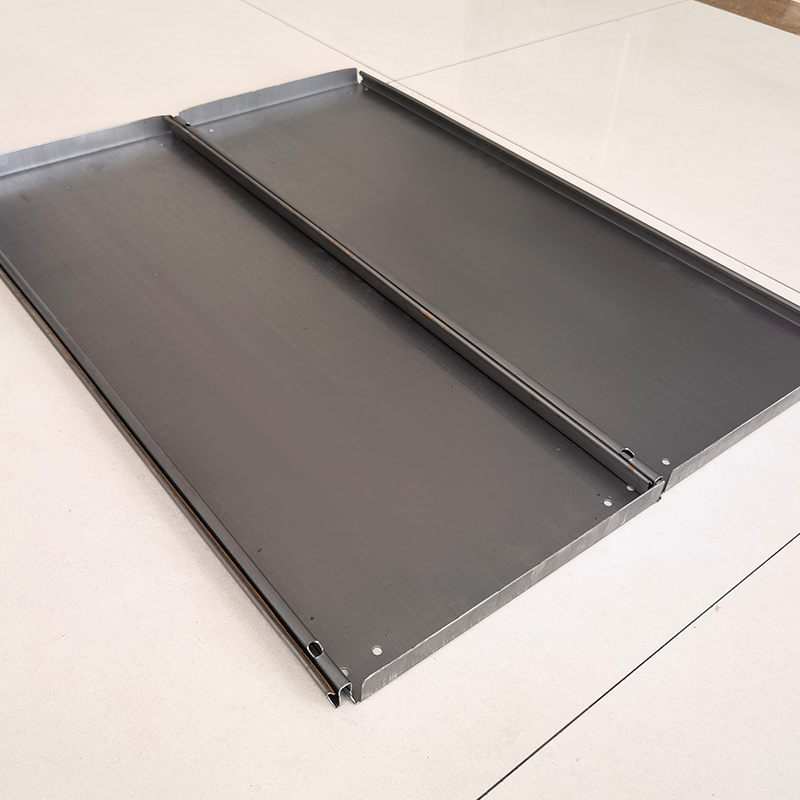

The machine is compatible with various metal sheet materials—including cold-rolled steel, galvanized steel, stainless steel, and aluminum alloy—handling thicknesses ranging from 0.6 mm to 1.2 mm and widths customized to client specifications (typically 200–1200 mm). It is capable of producing diverse panel types, such as flat, reinforced-rib, and hemmed designs.
II. Core Advantages and Selling Points
1. Multifunctional Capability: Replaces Multiple Traditional Machines
The integrated line combines multiple processes—uncoiling, leveling, feeding, punching, cold roll forming, edge bending, and cut-to-length shearing—into a single system. A single machine performs the work that traditionally requires three separate units: a CNC punching machine, a CNC bending machine, and a CNC shearing machine. This significantly reduces equipment investment, saves factory floor space, and lowers maintenance costs.
2. High-Efficiency Production: Industry-Leading Output
Achieves continuous production from coil loading to the discharge of finished parts in a single pass. Production speeds reach up to 15 meters per minute. Specification changes take only 3 minutes. The entire line requires only one operator, drastically reducing labor costs.
3. High-Precision Forming: Superior Quality
Utilizes a multi-stage progressive cold roll forming process combined with high-precision rollers and a servo control system, keeping dimensional accuracy within ±0.5mm. Cut-length tolerance is < ±0.5 mm. The servo feeding system ensures precise positioning, guaranteeing accurate hole placement and consistent forming. Finished products feature high flatness and uniform dimensions, ensuring smooth assembly of the shelving units.
4. Versatility and Flexible Production
A single production line can manufacture shelving panels of various specifications. It employs CNC stepless rapid adjustment technology, eliminating the need for repetitive fine-tuning after changing specifications. This saves significant material waste typically generated during changeovers and reduces material costs. It meets production requirements for a wide range of products, including light-duty, medium-duty, supermarket, and display shelving.
5. Intelligent Control: User-Friendly Operation
Features fully automatic PLC control and a touchscreen HMI for intuitive, convenient parameter setting. Multiple production batches can be programmed, allowing for specification changes with a single-button command. Equipped with multiple safety protection devices to ensure operator safety. Includes automatic fault diagnosis and alarm functions for rapid troubleshooting and maintenance, significantly lowering the skill requirements for operators. 6. Robust, Durable, Stable, and Reliable
The machine base is a welded steel structure, tempered to relieve internal stress and prevent deformation.
The forming stands feature a cast-iron structure that is tempered for high strength and a long service life.
Rollers are made of Cr12MoV steel and quenched to achieve a hardness of HRC 56–62.
Roller shafts are made of 40Cr steel, heat-treated (quenched and tempered) to a hardness of HB 280.
The drive system utilizes a gearbox configuration; each forming stand is equipped with an independent gearbox, ensuring stable, high-intensity operation over long periods.
The cutting die uses Cr12MoV tool steel, ensuring burr-free cuts, long tool life, and quick replacement.
Key electrical components—such as PLCs and heavy-duty variable frequency drives—are sourced from renowned brands like Delta and Schneider.
7. Material Savings and Cost Reduction
Utilizes CNC-based, rapid, stepless specification adjustment technology, significantly reducing trial-run waste typically generated during product changeovers. High-precision forming minimizes material waste, substantially increasing material utilization rates. Compared to traditional multi-step processing, the entire line requires only one operator; it eliminates manual handling and positioning steps, thereby drastically reducing labor costs.
III. Technical Parameters
Item Parameter
Applicable materials: Cold-rolled sheet, galvanized sheet, stainless steel, aluminum alloy, etc.
Material thickness: 0.6–1.2 mm (customizable)
Material width: Customized to requirements (typically 200–1200 mm)
Forming stations: 18–22 sets
Production speed: 0–15 m/min
Forming precision ≤±0.5 mm
Cut-length tolerance ≤±0.5 mm
Specification changeover time ≤3 minutes
Roller material Cr12MoV, HRC 56–62
Roller shaft material 40Cr, HB 280
Cutting die material: Cr12MoV
Electrical control: Fully automatic PLC control
Operators 1 person
Quality assurance: CE certified
IV. Production Process

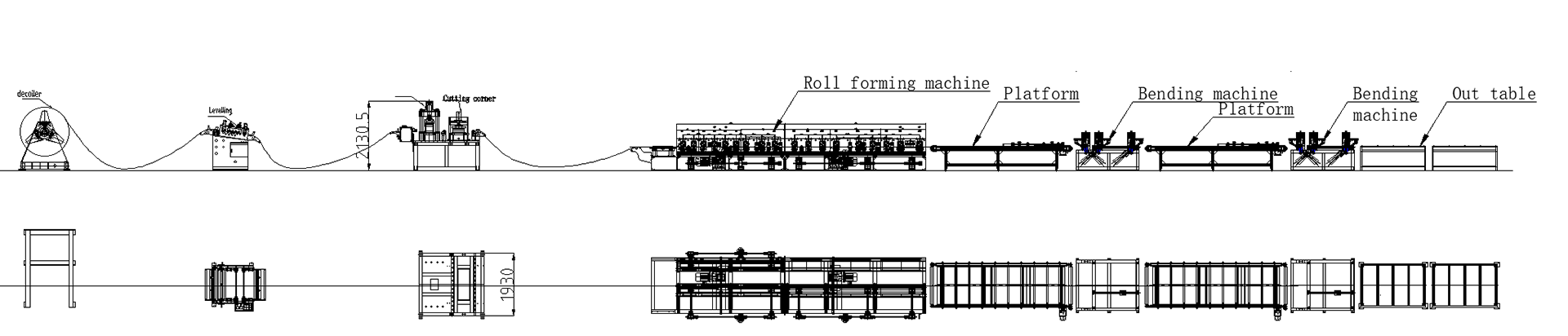

Uncoiling & Feeding → Leveling → Servo Feeding/Punching → Guided Feeding → Cold Roll Forming → Cut-to-Length → Collection Table
Process Step Description
Uncoiling & Feeding: Loads the steel coil onto the uncoiler to provide a continuous supply of material to the production line.
Leveling: Uses a multi-roller leveler for precision flattening; eliminates internal material stress to ensure accuracy in subsequent forming stages.
Servo Feeding & Punching: Employs a servo system for precise positioning to punch bottom mounting holes and various other hole patterns.
Guided Feeding: Features automatic material guiding and alignment correction to ensure smooth feeding of steel strips of varying widths.
Cold Roll Forming: Utilizes a multi-pass, progressive cold roll forming process to gradually shape the strip into the required cross-sectional profile.
Cut-to-Length: Automatically cuts the material to the preset length using a hydraulic system; ensures high precision and clean, smooth cut edges.
Collection Table: Collects finished products (manually or automatically) for orderly discharge.
V. Application Areas
The shelving panels produced by the roll-forming machine are widely used in the following scenarios:
Warehousing and Logistics: Medium- to heavy-duty shelving systems in industrial warehouses and logistics centers—featuring high load-bearing capacity and excellent flatness.
Supermarkets and Retail Stores: Merchandise display and product showcasing—featuring an attractive appearance and uniform specifications.
Shopping Centers: Product display shelving in shopping centers of all sizes—offering various specifications to meet diverse display needs.
Manufacturing Warehouses: Storage for raw materials and finished goods in factories—featuring reinforced panels with superior load-bearing capacity.
E-commerce Logistics Centers: High-efficiency storage systems—featuring precise dimensions and easy assembly.
Data Centers: Cable management and equipment support in server rooms—featuring high-flatness panels that ensure stable equipment placement.
VI. Service Support
Solution Design: Personalized equipment selection and production line layout based on customer product drawings, capacity requirements, and target markets.
Custom Manufacturing: Support for non-standard customization, with full control over the entire process—from roll design to complete line manufacturing.
Installation & Commissioning: On-site installation, commissioning, and operator training provided by engineers to ensure rapid production startup.
After-Sales Support: Long-term technical consultation and spare parts supply; engineers hold valid visas and are available for on-site service worldwide at any time.
Continuous Optimization: Equipment modification and capacity upgrade services available to adapt to changing production needs.
VII. Why Choose Us
Nearly 20 years of manufacturing experience: Mature technology, refined processes, and reliable quality
High-precision manufacturing capabilities: Forming precision ≤±0.5mm and cutting tolerance ≤±0.5mm—far exceeding industry standards
Integrated processing advantages: Combines punching, forming, flanging, and cutting into a single-machine operation, replacing three traditional machines
Direct manufacturer: No middlemen, offering excellent value for money
Strong custom engineering capabilities: Ability to design complex cold-roll forming lines tailored to specific customer requirements
Global service network: Engineers hold all necessary visas, ensuring rapid response times
